Home > Products > Marine Generator > WEICHCAI Marine Engine 500KW Diesel Generator CCS BV Approved
WEICHCAI Marine Engine 500KW Diesel Generator CCS BV Approved
US$ 2,500 - 70,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T
You May Like
-
500KW Marine Generator WEICHCAI Marine Engine Diesel Generator CCS BV Approved
-
500kva diesel generator shangchai marine engine oem genset factory
-
400KW marine diesel genset of shanghai engine oem genset factory
-
500KW 1000RPM Marine Generator WEICHCAI Engine Diesel Generator CCS BV Approved
-
Deutz Marine diesel generator 90KW CCS Approved magnet generator diesel generator Factory price
Quality Choice
-
Deutz Marine diesel generator 90KW CCS Approved diesel generator Factory price
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SUDONG | |
| Model Number | CW6200-39 | Output Type | AC Three Phase | |
| Speed | 1000 RPM | Frequency | 50HZ | |
| Rated Power | 500KW | Rated Voltage | 400V | |
| Rated Current | 900A |
Product Description
Product Description

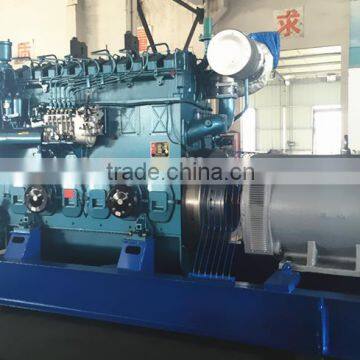

WEICHCAI Marine Engine 500KW Diesel Generator CCS BV Approved
Weichai Main/Harbor generator
Rated Power:24KW-1500KW(30KVA-1750KVA);
Vlotage:50HZ,400V;Customized generatore:60HZ,440V and others are optional;
Electrical start,Spring start and air start are optional;
Engine monitor panel and genset control panel;
Powered by WEICHAI Engine coupled with Sanbo;Stamford,Siemens,Liandian,Marathon alternators are optional;
IMO Tier II Certificate;
CCS,BV,GL,KR,RINA,ABS,RS Approved.
Product Overviews
| Marine genset Data | Engine Technical Data | Alternator Data | Genset Sizes | |||||||
| Genset Model | Rated Power | Fre/Volt | Engine Model | Rated Power | Cyl. | Bore×Stroke | Fuel Consumption | Sanbo | Diemensions | Weight |
| kW | Hz/V | kW | mm | g/kw.h | L*W*H (mm) | kgs | ||||
| CCFJ12WP | 12 | 50/400 | WP2.1D18E2 | 18 | 4 | 85×92 | 210+5% | SB-HW4(.D)-12 | 1320*640*1140 | 430 |
| CCFJ16WP | 16 | 50/400 | WP2.1D18E2 | 18 | 4 | 90×100 | 210+5% | SB-HW4(.D)-16 | 1320*640*1140 | 450 |
| CCFJ20WP | 20 | 50/400 | WP2.5D22E2 | 22 | 4 | 90×100 | 210+5% | SB-HW4(.D)-20 | 1370*640*1200 | 450 |
| CCFJ150WP | 150 | 50/400 | WP10CD200E200 | 182 | 6 | 126×130 | 197+5% | SB-HW4(.D)-150 | 2835*1090*1750 | 1900 |
| CCFJ300WP | 300 | 50/400 | WP13CD385E200 | 350 | 6 | 127×165 | 197+5% | SB-HW4(.D)-300 | 3920*1450*1750 | 3000 |
| CCFJ250WP | 250 | 50/400 | R6160ZCD280 | 280 | 6 | 160×225 | 205+5% | SB-HW4-250-6P | 3800*1350*1950 | 5400 |
| CCFJ400WP | 400 | 50/400 | X6170ZCD440-4 | 440 | 6 | 170×200 | 197+5% | SB-HW4(.D)-400 | 3800*1350*1950 | 6900 |
| CCFJ400WP | 400 | 50/400 | 8170ZCD440-1 | 440 | 6 | 170×200 | 197+5% | SB-HW4-400-6P | 3800*1350*2300 | 8200 |
| CCFJ540WP | 540 | 50/400 | 8170ZCD600-4 | 600 | 6 | 170×200 | 197+5% | SB-HW4(.D)-560 | 4400*1350*2300 | 8300 |
| CCFJ1000WP | 1000 | 50/400 | CW12V200ZD | 1200 | V12 | 200×270 | 197+5% | SB-HW4-1000-6P | 5000*2100*2450 | 19500 |
| CCFJ1200WP | 1200 | 50/400 | XCW12V200ZD-1 | 1440 | V12 | 200×270 | 197+5% | SB-HW4-1200-6P | 5300*2200*2450 | 20000 |
| CCFJ1500WP | 1500 | 50/400 | CW8250ZLD | 1960 | 8 | 250×300 | 197+5% | SB-HW4-1500-6P | 5500*2300*2450 | 22500 |
Product Advantages:
1. Diesel genset comply with CCS,BV,ABS,DNV,GL,RINA,RS.
2. Passed through Certifications:ISO9001,CE
3. Professional engineers and skilled technicals,sales teams.
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Steady relationships with engine and alternators’ supplier both domestic and global.
7. Excellent after sale service.
