Product Details
| Place of Origin | Jiangsu, China | Brand Name | SUDONG | |
| Model Number | 5210ZLC-5 | Output Type | AC Three Phase | |
| Speed | 750RPM | Frequency | 50HZ | |
| Rated Power | 500KW | Rated Voltage | 400V | |
| Rated Current | 900A |
Product Description

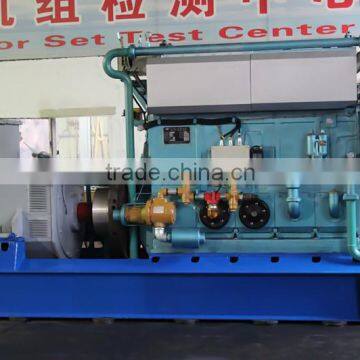

500KW Marine Generator set Zichai Engine 5210L Series Diesel Generator CCS BV Approced
Zichai Main/Harbor generator
Rated Power:150KW-1400KW(187.5KVA-1750KVA);
Vlotage:50HZ,400V;Customized generatore:60HZ,440V and others are optional;
Electrical start,Spring start are optional;
Engine monitor panel and genset control panel;
Powered by Zichai Engine(150,170,210 and 250 series) coupled with Sanbo;Stamford,Siemens,Liandian,Marathon alternators are optional;
IMO Tier II Certificate;
CCS,BV Approved.
500KW/625KVA Zichai Engine Technical Parameters
| Engine brand:ZICHAI | |
| Model | 5210zlc-5 |
| Type | In-Line,Direct-Injection,Four -Stroke,Exhaust turbo charging,cannot inversion |
| Bore/stroke(mm) | 210/290 |
| Cyl. | 6 |
| Prime speed(r/min) | 750 |
| Continous Power(kW) | 550 |
| Mean effective pressure(MPA) | 1.75 |
| Compression Ratio | 13.0 |
| Crankshaft rotationdirection | Turn right is Clockwise,Turn left is counterclockwise |
| Min speed stable work(r/min) | 300 |
| Oil Consumption(g/kw.h) | 1.0 |
| Fuel Consumption(g/kw.h) | 196 |
| Cooling Method | Water cooling |
| Start method | Electric,Air,Double motor start |
500KW/625KVA Alternator techincal data
| Alternator model | 1FC6502-8SA42 |
| Alternator manufacturer | Siemens |
| Service Duty | S1 |
| Rated output prime power | 500 KW/625KVA |
| Rated speed | 750 RPM |
| Rated frequency | 50 Hz |
| Current(A) | 902 |
| Phase | 3 |
| Rated voltage | 400 V(Available with customer requirements) |
| Power factor | 0.8 |
| Exc.volt(V) | 120 |
| Exc.curr(A) | 7.5 |
| Insulation grade | F |
| Protection grade | IP23 |
500KW/625KVA MarineDiesel generator SET
Product Advantages:
1. Diesel genset comply with CCS,BV,ABS,DNV,GL,RINA,RS.
2. Passed through Certifications:ISO9001,CE
3. Professional engineers and skilled technicals,sales teams.
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Steady relationships with engine and alternators’ supplier both domestic and global.
7. Excellent after sale service.
Sudong Power Generating Equipment Co.,Ltd is a specialist factory in design and manufacture of generators set such as Marine type,Land Type,Gas Type and Sound-proof generator set,Mobile generator,Disel Pump set.
OEM Manufacturer,high quality,competitive price.
Conforms to ISO9001,CE,CCS,BV,ABS,RINA,DNV,GL etc
More details,welcome to contact us.
Sudong Power will be your reliable partner on Power solutions.
