Home > Products > Marine Generator > 787.5kva marine generator set-yuchai engines with sanbo alternator-CCS approved-OEM Genset manufacturer

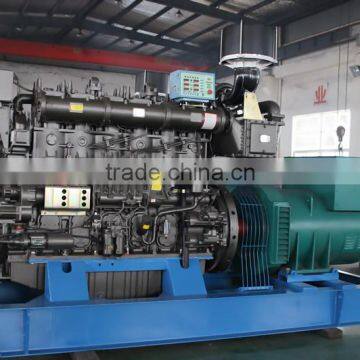

787.5kva marine generator set-yuchai engines with sanbo alternator-CCS approved-OEM Genset manufacturer

FOB Price

US$ 150000.00 - 150000.00 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	YUCHAI
Model Number	YC6CL960L-C20	Output Type	AC Three Phase
Speed	1000	Frequency	50HZ
Rated Power	630KW/787.5KVA	Rated Voltage	400V
Rated Current	1134A

Product Description

787.5kva marine generator set-yuchai engines with sanbo alternator-CCS approved-OEM Genset manufacturer

YUCHAI Series Generator sets Main Feature

Power(50Hz):30KW-800KW(38KVA-1000KVA);

110V,220V,380V,400V,415V,440V,480V,660V,690V are optional;

Electrical start,Spring start and air start are optional;

Engine monitor panel and genset control panel are optional;

IMO Tier II Certificate;

CCS approved.

YUCHAI Engine Technical data

Engine brand:Yuchai
Model	YC6CL960L-C20
Type	In-Line,Direct-Injection, Four -Stroke,Wet -Cylinder Liner
Bore/stroke(mm)	200/290
Cylinder Numbers	6
Displacement(L)	54.6
Compression ratio	14.5:1
Prime power/speed (kW/r/min)	706/1000
Standby power(kW)	777
Starting method	Electric
Governing method	Electronic(Air optional)
Aspiration method	TDI
Contionous Power/Speed(KW(ps)/r/min	706/1000
Fuel consumption (g/kW.h)	≤195
Rotation direction of crankshaft	Counter clockwise (face to power output end)

Alternator Technical data

Alternator model	SB-HW4-630-6P
Alternator manufacturer	Sanbo Alternator
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime power	630 kW
Rated speed	1000 RPM
Rated frequency	50 Hz
Phase	3
Rated voltage	400 V(Available with customer requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H/H
Protection grade	IP23

Package:Plywood

Company Introduction

Sudong Power Generating Equipment Co.,Ltd is a specialist factory in design and manufacture of generators set such as Marine type,Land Type,Gas Type and Sound-proof generator set,Mobilegenerator,Disel Pump set.

OEM Manufacturer,high quality,competitive price.

Conforms to ISO9001,CE,CCS,BV,ABS,RINA,DNV,GL etc

More details,welcome to contact us.
