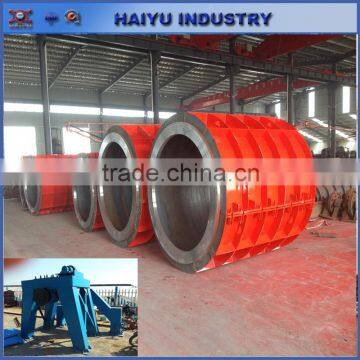

Horizontal concrete pipe making machine

Specifications

Made of casting steel,Pipe machines produce various concrete drainage pipes with centrifuge or hanging roller pipe machine.

1. Overview of Suspension Roller type Horizontal Concrete Pipe Making Machine

Suspension roller type concrete pipe making machine is a kind of perfect machine and equipment to produce reinforced concrete pipes and Pre-stressed concrete pipe. This machine is capable to make pipes with diameter from 300-2000mm and with length from2-4meters. We can design many kinds of the pipe joint, including flush joint, socket & spigot joint And all the concrete pipes are widely used in administrative drainage, agricultural field irrigation, road culvert and deep water well.

2. Working Principle of Suspension Roller type Horizontal Concrete Pipe Making  Machine

This machine uses the Roller to support the concrete pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete between the mould and the roller will be compacted solid to form a pipe.

3. Character of Suspension Roller type Horizontal Concrete Pipe Making  Machine

3.1 Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.

3.2 This pipe machine uses the dry cast material, there will no waste cement mud, then it won't pollute the environment.

3.3 During the production, the noise is low, it is about 80-90 DB.

3.4 The concrete pipes are with high pressure load and with high production efficiency.

4.Technical Parameter of Suspension Roller type Concrete Pipe Machine

Packaging Details: wooden box and other packing materials as per kinds of machines or as customer request

1.Complete production line supporting machines and all necessary accessories with high performance and good quality;

2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.

3.Installation and commissioning of all production machines as well as the workers training.

Shandong Haiyu Industry Co,.Ltd is a chinese supplier and manufactuer producing concrete pole making machine and concrete pile making machine and concrete pipe making machine . The equipment and moulds meet national standards of the world . Our Products spread all over Africa , Middle Africa, Middle Asia and Southeast Asia .

1. Specifications of Concrete Pipe :Length, Diamete and joint ways.

2. Type of concrete pipe joint : Spigot and bell , Tongue and groove ,plain joint .

3. Daily or Annual Productivity.
