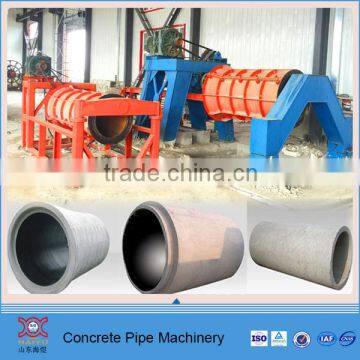

Practial and Esay Operation concrete culvert pipe precasting machine

 Concrete Culvert Pipe Casting Machine

Overview of RCC Concrete Cuvlert Pipe Machine

XG(800-1500)*2000 RCC concrete pipe making machine is composed of four kinds of steel product :rack ,amplitude ,vibration system , demould and demise system.The machine weight is 2.5t, power is 6.2kw, this type machine is the first choice for concrete products company with the advantage of wide used, high effective and low energy-consuming .Concrete pipe making machine is used to produce concrete products with inner diameter 200-2000mm, length 1-2m , shape round square trilateral oval , joint of plaint spun collars Spigot Socket. The quality of pipe conform to GB/T11836.

Specification for Suspension Roller Concrete Pipe Machine

Type: suspension roller concrete pipe making machine

Productivity:8-10 pecs/ hour

Concrete Ratio:C30/ water(0.38):cement(1.1):sand(1.11):stone(2.72)

Power:45kw

Production process:

Adjusting the vibration system to the best station according to the size of concrete pipe and the vibration frequency of the raw material diameter. When putting materials , vibrate, on the effect of amplitude vibration , it need 1-5 minutes to form solid molding ,interval time is 1-5 seconds , it means demoulding automatically no matter how big the size is.After demoulding , the mold will be transfer to curing place by trolley , the concrete pipe machine will be used to produce the next one when the product put away.

When produce concrete pipes with different specification, it just needs a relevant mold to ensure the product same.

The machine can be installed underground, it has advantage of small voice, no pollution , safe and reliable.

Suspension roller concrete pipe machine apply to concrete pipes with small diameter, it has advantage of saving cost, high productivity.

Technical Parameters Of Suspension Roller Concrete Pipe Machine

  Reinforced Concrete Pipe External Load and Inner Wtare Pressure Test

Concrete Pipe Testing Machine

 Application

Installation

Certificate

 Name Card
