Concrete Pipe Machine 300mm-2500mm Diameter
- Qingdao
- T/T Credit Card
You May Like
-
Concrete Culvert Pipe Machine for Building Construction
-
Concrete Pipe Making Machine for Building Construction
-
China Hot Sale Concrete Pipe Machine of Building Foundation Quality Choice
-
Cement Pipe Making Machine Manufacturers
-
Fully Automatic Vertical Vibration Concrete Pipe Making Machine Quality Choice
-
Vertical Vibration Concrete Pipe Production Line Machinery Quality Choice
Product Details
| Condition | New | Type | Pipe Production Line | |
| Pipe Material | Concrete | Application | Drain Pipe | |
| Production Capacity | 4-6 /hour | Place of Origin | Shandong, China | |
| Brand Name | Haiyu | Model Number | HYSP | |
| Voltage | 380V | Power(W) | 30KW | |
| Dimension(L*W*H) | customized | Weight | 3.5TONS | |
| Certification | ISO9000 | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
concrete pipe proction line/ building construcion culvert pipe and drainage pipe making machine

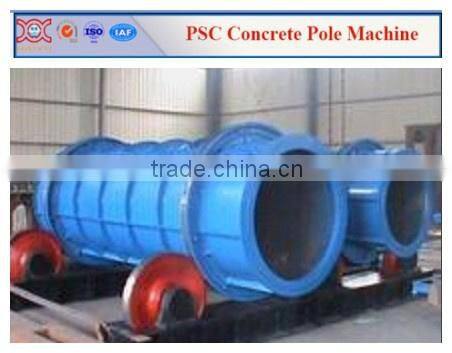

1 mould for concrete pipe
according to the shape of concrete joint, concrete pipe fall into three types:plain top,spun collars , spogit scoket.

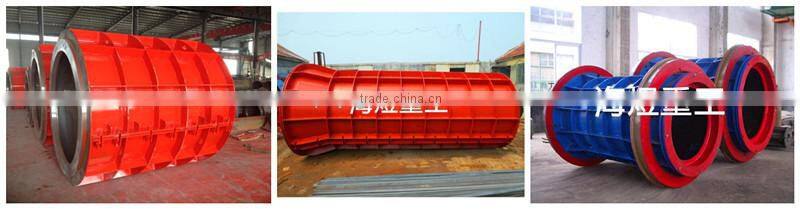

Overview of Concrete Pipe Mold
The centrifugal concrete pipe mold is the essential mold to make the prestressed reinforcd conrete pipe with centrifugal molding. The structure of the mold is reasonable; the manufacturing technology is advanced; installationg and dismounting is very easy; enough strength and rigidity make it safe and reliable.
Technical Indexs of Concrete Pipe Mould
| Mold Diameter(mm) | Cylinder Thickness | Hooped, Longitudinal Reinforcement |
| 300~600 | 6mm | 8mm×60mm |
| 800~1000 | 8mm | 10mm×80mm |
| 1200~1500 | 10mm | 12mm×120mm |
| 1500~2000 | 10mm | 14mm×150mm |

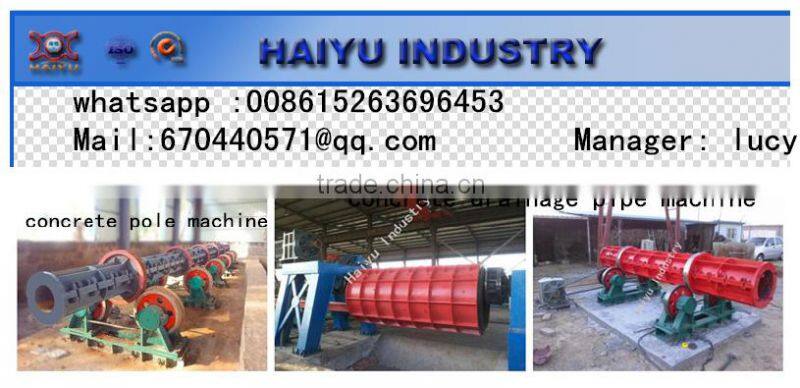

2 concrete pipe making machine
according to the difference of production technology, pipe making machine fall into three type: centrifugal type ,suspension roller type, vertical extrusion pipe machine.
(1)Product Introduction of Centrifugal type Concrete Pipe Machine
The machine takes sands, stones and cement as raw materials to produce many kinds of reinforced concrete drainage pipe with the length of 1000-4000mm, internal diameter of 200-4000mm with the mouth shapes of flat, tongue and groove and socket and spigot. All mechanical indexes have meet the national standards. They have been used widely in deep well, municipal drainage, expressway and other water supply and sewerage works with higher level required. The production efficiency can reach 4-5 piece/hour.
(2)Overview of Suspension Roller type Concrete Pipe Machine
Working Principle of Suspension Roller type Concrete pipe making Machine
This machine uses the Roller to support the concrete pipe mould, and produce the roller force to concrete in the mould. When the roller rotate at a high speed, the concrete in the mould will spread in the inner wall of the pipe mould and form a cement pipe with the centrifugal force, and when the mould with the inner concrete pass on the roller, the concrete between the mould and the roller will be compacted solid to form a pipe.
Character of Suspension Roller type Concrete pipe making Machine
1 Short production Cycle: because of the good effect of the roller to compact the concrete, every pipe just need 3-5 minutes with high speed roller rotation.
2 This pipe machine uses the dry cast material, there will no waste cement mud, then it won't pollute the environment.
3 During the production, the noise is low, it is about 80-90 DB.
4 The concrete pipes are with high pressure load and with high production efficiency.
Technical Parameter of Suspension Roller type Concrete pipe making Machine
| XG 200-600 | XG 800-1200 | XG 1000-1500 | XG 4M | |
| Diameter | 200-600mm | 800-1200mm | 1000-1500mm | 300-2000mm |
| Length | 2000mm | 2000mm | 2000mm | 1000-4000mm |
| Power of Motor | 15KW | 45KW | 90KW | 110KW |
| Capacity | 10-15Pc/h | 8-12Pc/h | 6-10Pc/h | 6-8Pc/h |
| Labor demand without feeding machine | 4-5 | 4-5 | 4-5 | 4-5 |
| Labor demand with feeding machine | 3-4 | 3-4 | 3-4 | 3-4 |
| Joint | Plain,socket and spigot,male and female | Plain,socket and spigot,male and female | Plain,socket and spigot, tongue and groove | Plain,socket and spigot,tongue and groove |
3 automatic concrete pipe feeding machine
Product Introduction of Automatic Concrete Feeding Machine For Concrete Pipe
For the consistence feeding of concrete into mold, Automatic Concrete Feeding Machine is the solution. The feeding machine for concrete pipe mainly consists of running gear, feeding system, pneumatic and electric control. The installation of groove rail in the running gear can avoid the blocking of scattered stones. The adoption of chain drive in transmission avoid the slip of the pulley; spiral feeding device can be configured according to user's application of symmetrical operation. In order to realize the distant wireless remote control, the wireless remote controller is installed so that reduce the working strength and promote production efficiency in pipe production line.

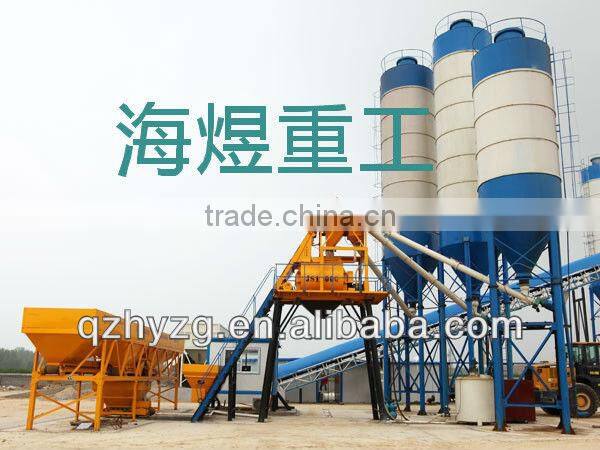

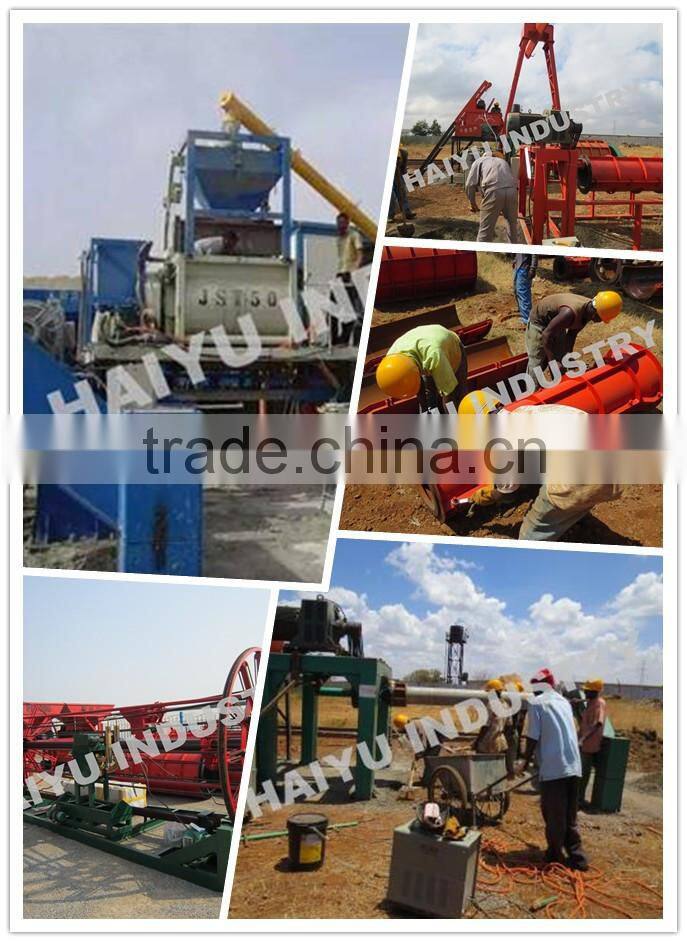

4 concrete batching plant
include concrete mixer machine, concrete batching machine and cement silo .
5 STEEL CAGE FABRICATION

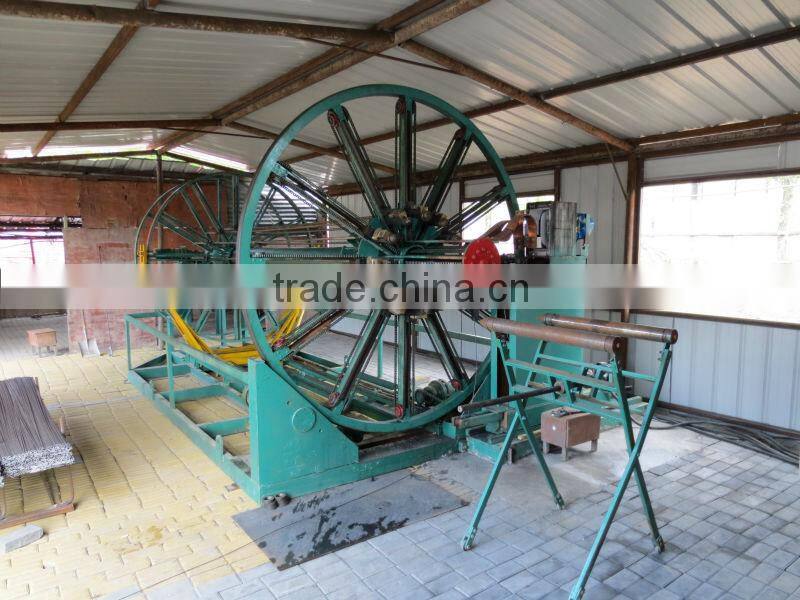

steel cage forming machine
Working Principle of Wire Cage Forming Machine for Concrete Pipe
This machine includes three plates, one is the main plate rotating, the second plate is pushing wire, the other plate is used to Diameter-transformed automaticly. The three plates are controlled and drove by its own motor and variable Frequency control system.

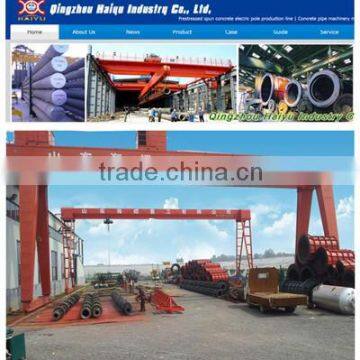

Production Introduction of Gantry Crane
MH type Gantry crane with electric hoist is used with CD1(single speed), MD1(double speed)type electric hoist, also one kind the middle and small scale hoist crane which has the axle to move. The lifting weight is 3-16ton, span is 12-30m, the working level is A3-A5, working environmental temperature is 25℃~40℃.
The product is a kind of crane for general purpose, mainly used in the loading and unloading or moving of materials of warehouse and open space.
We promise our customers:
High Qaulity ,
Professional Guidance,
Satisfactory After-Sale Service!
Warmly Welcome To Visit Our Factory !
