Competitive price of Concrete Pile Spining Making Machine

 Company Information:

Product Description:

Competitive price of Concrete Pile Spining Making Machine

       According to Concrete pile strength , there are PHC piles, and PC piles, According to different wall thickness, there are PC piles and PTC piles. Spun pile production line is used to produce High strength Cocrete piles. The popular specification of PHC piles are3 00mm ,400mm, 500mm, 600mm, 800mm and 1000mm, the length can be 7-15 meters, or we can design the mould according to your request.

Concrete pile spinning machine with steel pile mold are driven by variable frequency and variable speed regulating motor, and rotate at high speed to remove wet slurry and make concrete close to the inner wall of pile mold.

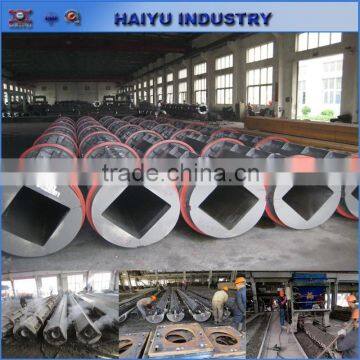

Concrete pile steel mould is used for producing square or round concrete spun piles .

The length of finished product is from 6,18m, and the diameter of finished products is 250-800mm.

Working Principle:

1. This spun pile steel mould shall operate together with pile spinning machine.

2. This mould forms pile under the force of  centrifugal. There are longitude stiffeners and latitude stiffeners on the mould surface.

3. The mould rotates in high speed under the motor driven. The redundant water in the slurry is released by the force of centrifugal, and the concrete is dense and high in strength. And the spun pile is formed around the inner wall of the mould.

Chinese standard of concrete pile

Our concrete pile machine features:

1. We keep absorbing  advantages of similar advanced products all over the world to keep our products alway going first .

2. The structure of this mould is novel, they are made in sections, and couple with bolts.

3. This spun pile mould is easy to transport and quick to assemble. Positioning is accurate.

4. It has good overall rigidity and smooth operation.

The concrete pile machine pictures show:

Concrete pile toe

Pile Sinking

Our spun concrete pile machine advantage:

1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).

2. Crack resistance can increase about 3~5 times

3. Rigidity increases 1~3 times.

4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).

5. Good durability, can delay the existence and expansion of cracks.

6. Protect the environment on which human beings depend on for existence, and reduce the deforestation

The Information we need to know from you:

1. Specifications of Concrete pile :Length, Diameter, Grade and PC bar

2. Type of concrete Pile :Pre-stressed or Reinforced .

3. Daily or Annual Productivity.

Certificate:

Packaging:

Different Machines with Different Package,  Plastic and Thick Paper,  Wooden Box or as the suctomer's request

Our services:

1.Complete production line supporting machines and all necessary accessories with high performance and good quality;
2. Free Service of plant structure design and layout plan drawings and other necessary construction drawings and guidance of construction work,office, warehouse etc and related drawings according to customers’ requirements.
3.Installation and commissioning of all production machines as well as the workers training.

Payment:

Payment Terms : T/T 30% in advance, 70% before the shippment . L/C100% at sight.

Delivery Time: 35 days after receipt of deposit.

Shipping Methods: ocean freight or air transportation.
