Home > Products > SMD LED Pixel Strip > LPD 8806 12v, 36 LEDs/ 12 Pixel Per meter, LED Strip LPD8806 Programmable

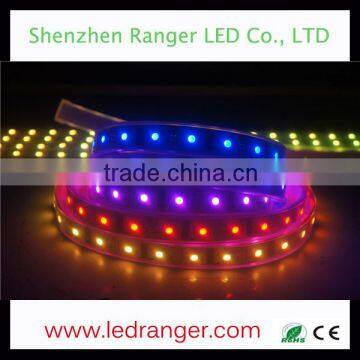

LPD 8806 12v, 36 LEDs/ 12 Pixel Per meter, LED Strip LPD8806 Programmable

FOB Price

US$ 7.8 - 14.5 / Meter

5 Meters(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD5050 RGB	Type	Flex LED Strips
Input Voltage(V)	5	Lamp Power	50
Working Temperature(℃)	-20, 60	Working Lifetime(Hour)	50000
Lamp Body Material	Copper	Certification	CE
Emitting Color	Changeable	Place of Origin	Guangdong, China
Brand Name	Ranger	Model Number	RL-LPD8806-5050RGB-36

Product Description

LPD 8806 12v, 36 LEDs/ 12 Pixel Per meter, LED Strip LPD8806 Programmable

IC TYPE

ITEM NO.

WIDTH
(mm)

LED

LED
QTY

IC
QTY

PIXEL
QTY

VOLT

POWER

GRAY
GRADE

LPD8806	RL-8806-5050RGB-32	15	32	16	32	5	10	128
	RL-8806-5050RGB-36	11	36	18	36	5	12
	RL-8806-5050RGB-48	15	48	24	48	5	14.4
	RL-8806-5050RGB-52	15	52	26	52	5	15.6
	RL-8806-5050RGB-60	15	60	30	60	5	18
	RL-8806-5050RGB-36	15	36	6	12	12	12

Connection:

1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control

Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video

Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product

Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.

3.Experienced employees that capable for good service

4.Considerate and kind sales-after service.

5.Strict QC procession, ensure each product is high quality.

Our Services

1.Manufacturer with our competitive price

2.Excellent management and technology QC Depa.aftersale team,we can do high technology

aftersale service.good quality products.

3.Prompt response to your request,

4.Short delivery,

5.Reliable warranty

6.OEM/ODM
