DMX512, DC5V,24LEDs/ 24 Pixels per meter, DMX512 LED Strip AUTO-Address

FOB Price

USD $9.5 - $10.5 / Meter

5 Meters(Min.Order)

Supply Ability 2000 Meter / Meters per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	5050 RGB	Type	Flex LED Strips
Input Voltage(V)	12	Lamp Power	45
Working Temperature(℃)	-20, 60	Working Lifetime(Hour)	50000
Lamp Body Material	Copper	Certification	CE
Emitting Color	Changeable	Place of Origin	Guangdong, China
Brand Name	Ranger	Model Number	RL-DMX-5050RGB-30

Product Description

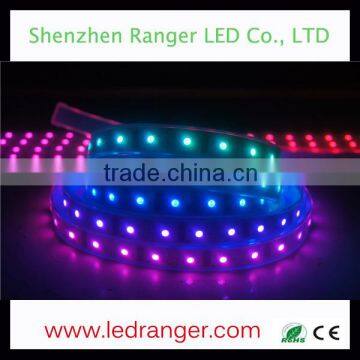

DMX512, DC12V,30LEDs/ 10 Pixels per meter, DMX512 LED Strip AUTO-Address

1 ) Factory price and qualtiy

2 ) Good copper material PCB

3 ) CE ROHS

4 ) Parallel signal connection

5 ) Epistar RGB LED

Different versions of dmx512 led strip

DMX512 led strip
30 LED	10 IC	Parallel Signal	10 Pixel	DC12V	Addressable
30 LED	10 IC	old DMX IC	10 Pixel	DC12V	Auto Address
30 LED	10 IC	old DMX IC With writrng IC	10 Pixel	12v	Addressable
24 LED	24 IC	old DMX IC	24 Pixel	DC5V	Auto Address
32 LED	32 IC	Parallel Signal	32 Pixel	DC5V	Addressable
32 LED	32 IC	old DMX IC	32 Pixels	DC5V	Auto Address

Connection:

1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control

Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video

Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product

Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.

3.Experienced employees that capable for good service

4.Considerate and kind sales-after service.

5.Strict QC procession, ensure each product is high quality.
