Product Details
| LED Light Source | 5050 RGB | Type | Flex LED Strips | |
| Input Voltage(V) | 5 | Lamp Power | 90 | |
| Working Temperature(℃) | -20, 60 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Copper | Certification | CE | |
| Emitting Color | Changeable | Place of Origin | Guangdong, China | |
| Brand Name | Ranger | Model Number | RL-APA102-5050RGB-60 |
Product Description

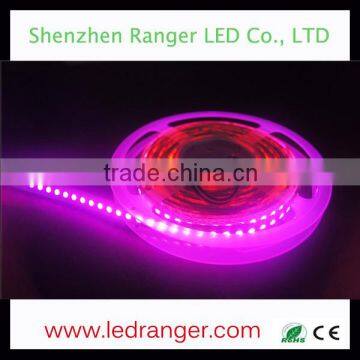

APA102C LED Strip, 60 LEDs /60 Pixels per meter WS2801 Inbuilt 5050 Addressable RGB LED Strip
| IC TYPE | ITEM NO. | WIDTH (mm) | LED QTY | IC QTY | PIXEL QTY | VOLT | POWER | GRAY GRADE |
| APA102 | RL-APA102-5050RGB-24 | 12 | 24 | 24 | 24 | 5 | 7.5 | 256 |
| RL-APA102-5050RGB-30 | 12 | 30 | 30 | 30 | 5 | 9 | ||
| RL-APA102-5050RGB-36 | 12 | 36 | 36 | 36 | 5 | 11 | ||
| RL-APA102-5050RGB-60 | 12 | 60 | 60 | 60 | 5 | 18 | ||
| RL-APA102-5050RGB-96 | 12 | 96 | 96 | 96 | 5 | 28.8 | ||
| RL-APA102-5050RGB-144 | 12 | 144 | 144 | 144 | 5 | 43.2 |
Connection:
1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control
Color:
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product
Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.
3.Experienced employees that capable for good service
4.Considerate and kind sales-after service.
5.Strict QC procession, ensure each product is high quality.
1.Manufacturer with our competitive price
2.Excellent management and technology QC Depa.aftersale team,we can do high technology
aftersale service.good quality products.
3.Prompt response to your request,
4.Short delivery,
5.Reliable warranty
6.OEM/ODM
