Home > Products > HDMI Converter > VGA HDMI Converter Over LAN Airbridge WiFi HD Adapter With 3.5mm Stereo Headphone Audio
VGA HDMI Converter Over LAN Airbridge WiFi HD Adapter With 3.5mm Stereo Headphone Audio
- 30000 Set / Sets per Month
- shenzhen/HK
- Credit Card
You May Like
-
WIFI to HDMI Converter, Airbrige WIFI HD Adapter
-
AC3 Audio Decoder, 5.1-channel Two Output Modes, 5V DC/1A Power Adapter
-
5.1-channel Two Output Modes, 5V DC/1A Power Adapter
-
Optical Audio Converter/Dolby 5.1/7.1 Decoder, Supports Multimedia Playback of USB Disk
-
Optical Audio Converter/Dolby 5.1/7.1 Decoder,
-
HDMI dts dac audio decoder
Product Details
Brand Name | ASK | Model Number | HDCN0010M1 | |
Place of Origin | Guangdong, China |
Product Description

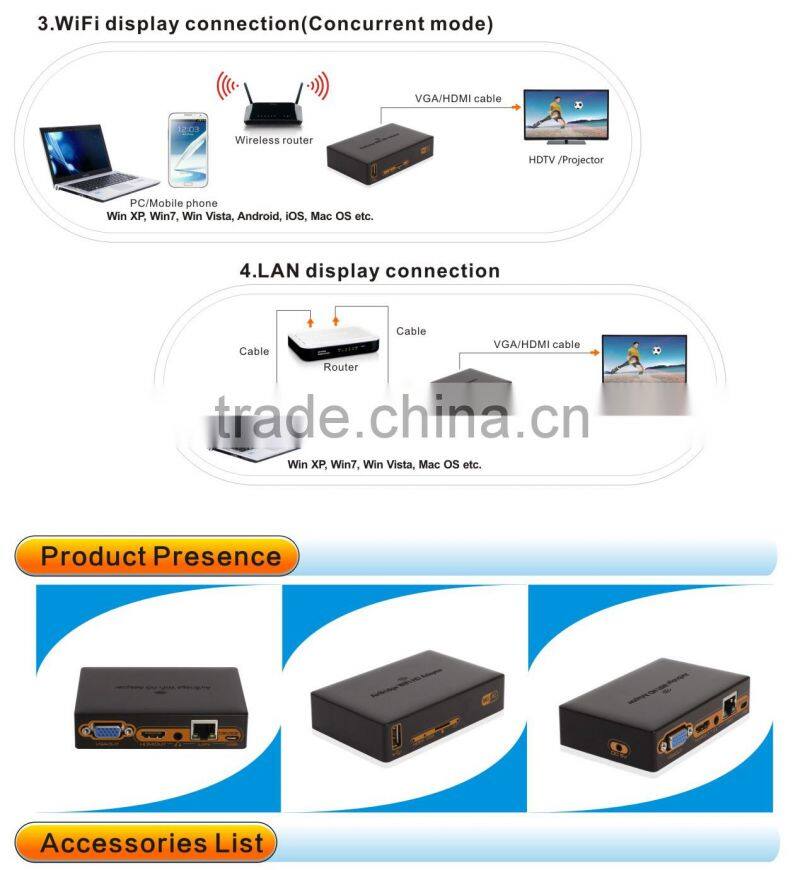

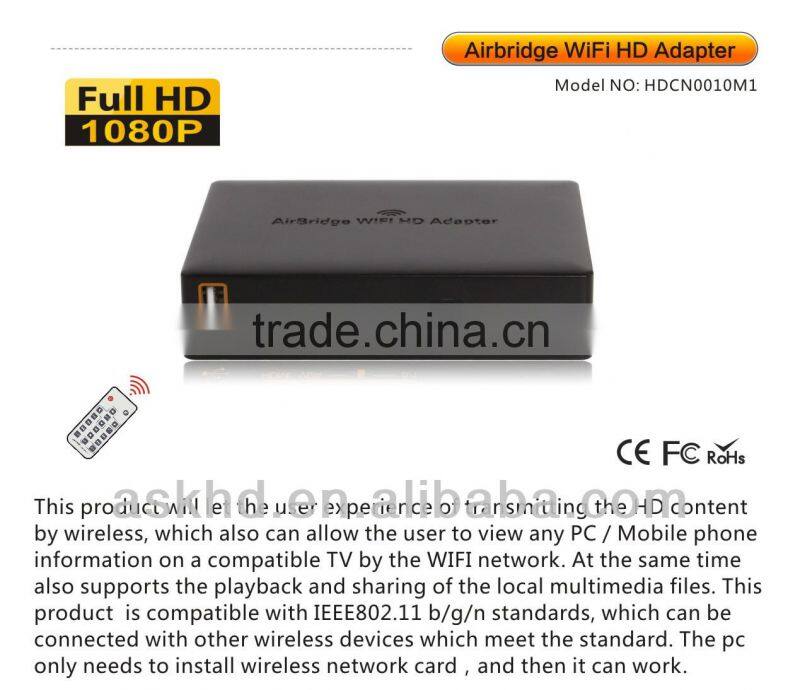

This product will let the user experience of transmitting the HD content by wireless, which also can allow the user to view any PC / Mobile phone information on a compatible TV by the WIFI network. At the same time also supports the playback and sharing of the local multimedia files. This product is compatible with IEEE802.11 b/g/n standards, which can be connected with other wireless devices which meet the standard. The pc only needs to install wireless network card,and then it can work.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
INTRODUCTION

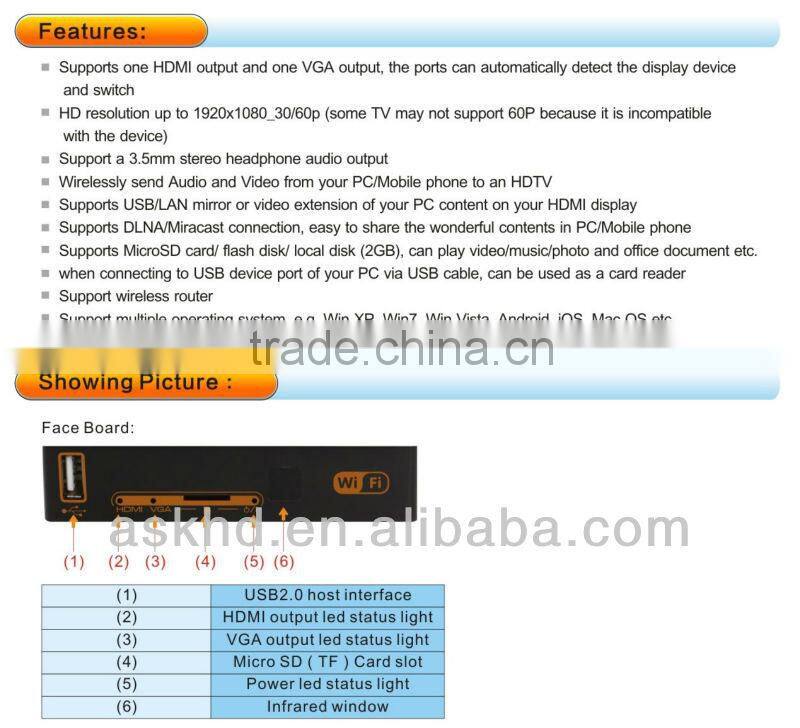

FEATURES:
l Supports one HDMI output and one VGA output, the ports can automatically detect the display device and switch
l HD resolution up to 1920x1080_30/60p (some TV may not support 60P because it is incompatible with the device)
l Support a 3.5mm stereo headphone audio output
l Wirelessly send Audio and Video from your PC/Mobile phone to an HDTV
l Supports USB/LAN mirror or video extension of your PC content on your HDMI display
l Supports DLNA/Miracast connection, easy to share the wonderful contents in PC/Mobile phone
l Supports MicroSD card/ flash disk/ local disk (2GB), can play video/music/photo and office document etc.
l when connecting to USB device port of your PC via USB cable, can be used as a card reader
l Support wireless router
l Support multiple operating system, e.g. Win XP, Win7, Win Vista, Android, iOS, Mac OS etc.
l USB host interface can provide high current (1A) charging
l Multi language menu
l DC5V/2A power adapter

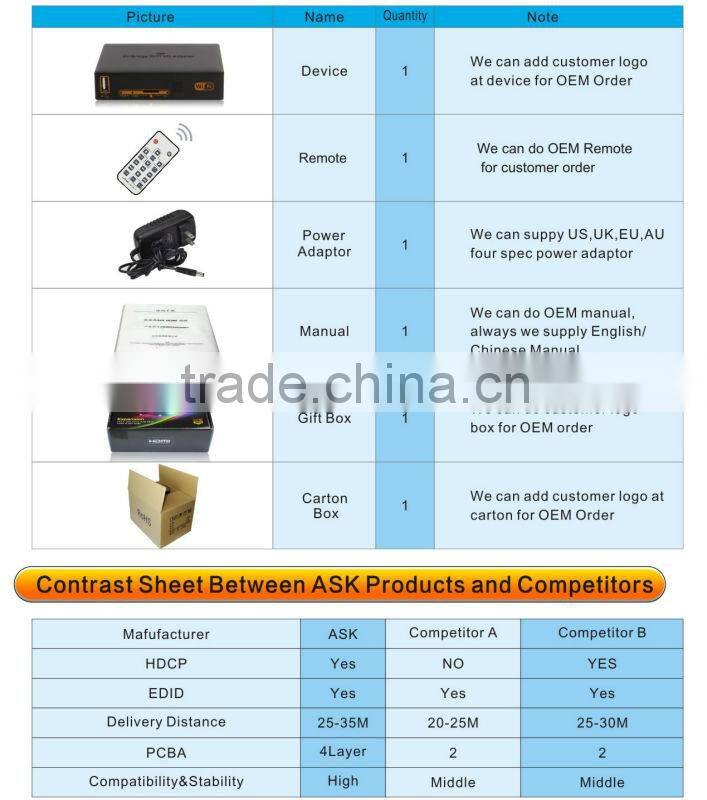

PACKAGE CONTENTS:
1. Main unit 1pcs
2. 5V DC power adapter 1pcs
3. Remote controller 1pcs
4. User manual 1pcs
SPECIFICATIONS: HDCN0010M1
VGA output resolution………………………………………………………………up to 1920x1080 @60Hz
HDMI output resolution……………………………………………………………………..up to 1080P/30Hz
HDMI audio format…………………………………DTS-HD/Dolby-true HD/LPCM/DTS/Dolby-AC3/DSD
Wireless Frequency range………………………………………………………………….2.4~2.4835GHz
Wireless transmission rate…………………………………………………………………………. 300Mbps
Wireless transmit power………………………………………………………………….18dBm (MAX EIRP)
Transmission distance…………………………………………………… 15m (Indoor and no obstacle)
Transmission delay…………..≤200ms(Related to PC performance, may be greater than this value)
HDMI output cable distance…………………………………............≤20m AWG26 HDMI standard cable
VGA output cable distance...........................................................................≤15m VGA standard cable
Max working current………………………………………………………… ..400mA
Power adapter format Input………………………………………AC 100V~240V 50HZ/60HZ; DC5V/2A
Operating Temperature range……………………………………………………………………....0 to +40°C
Storage Temperature range……………………………………………………………………....-20 to +60°C
Operating Humidity range………………………… 10 to 90%RH (No Condensation)
Storage Humidity range………………………… ..5 to 95%RH (No Condensation)
Case size (L x W x H) ……………………………… .102x66x25 (mm)
Weight……. 90g
