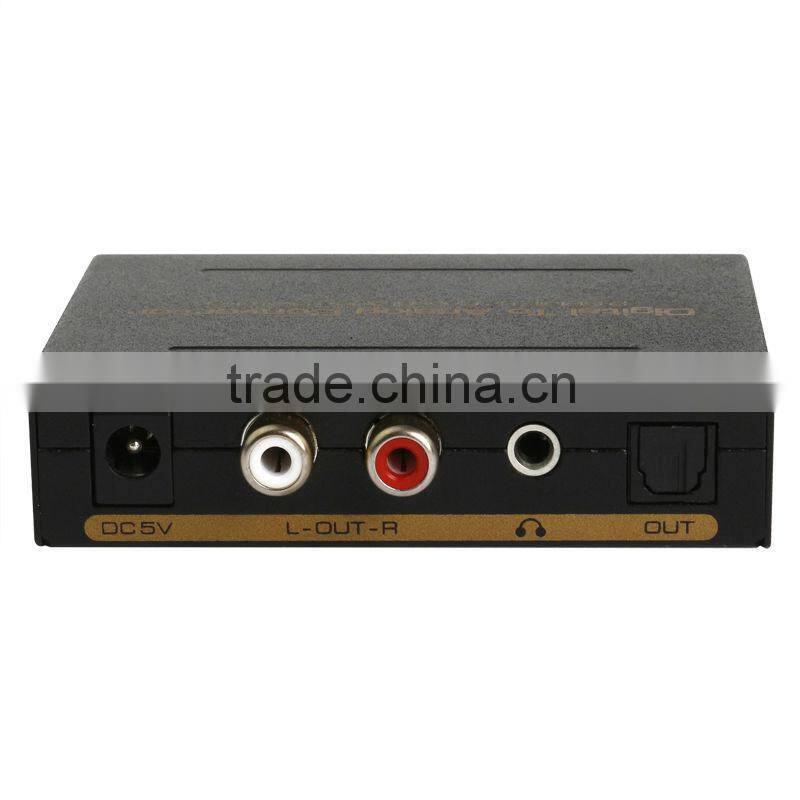

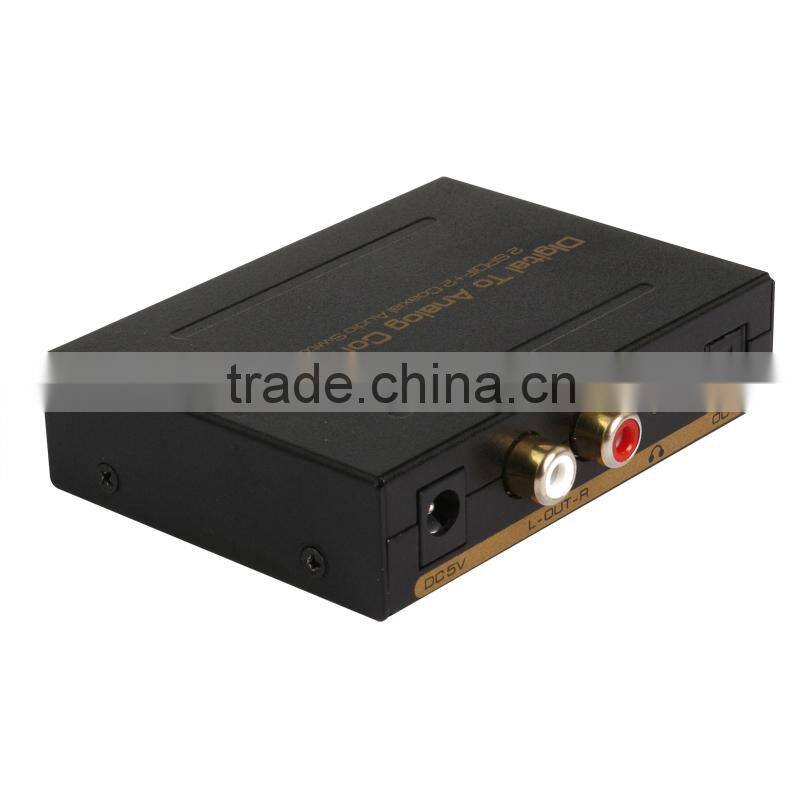

Digital to Analog Converter 2 SPDIF+2 Coaxial Audio Switcher

Specifications

FEATURES:

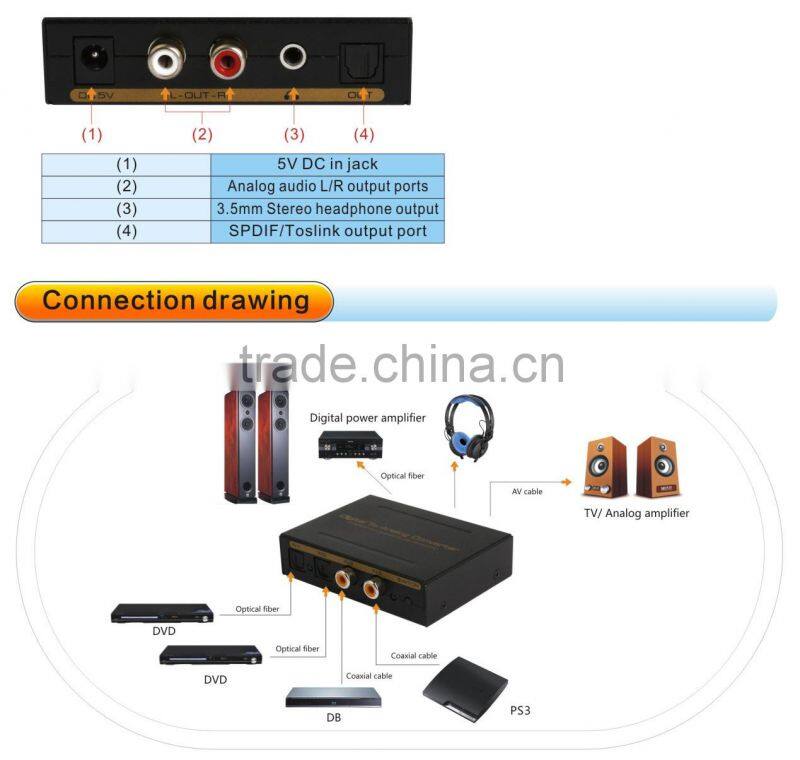

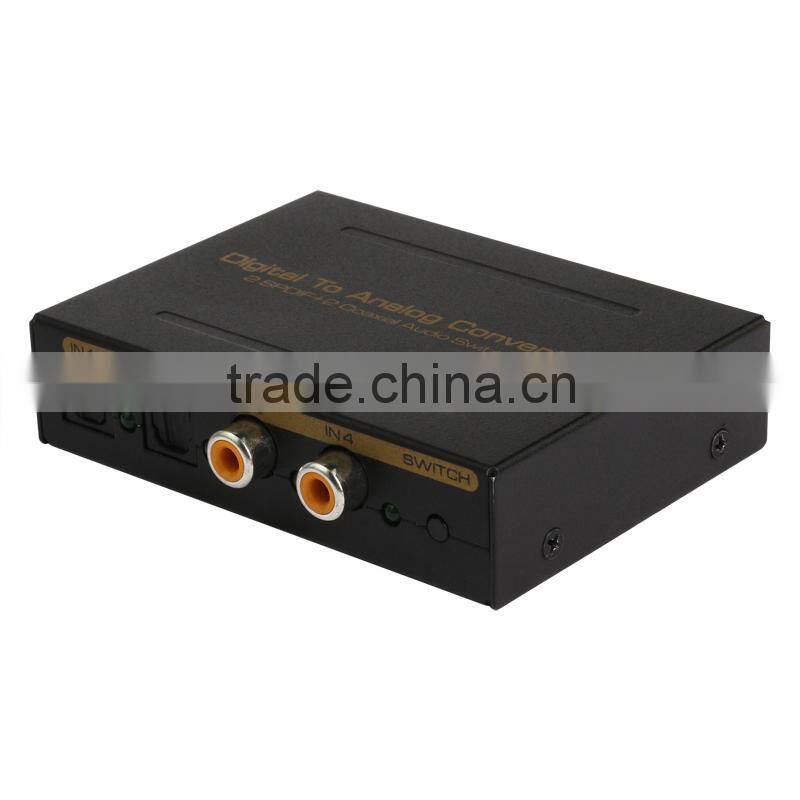

l   4-Ports SPDIF (2×Toslink and 2×Coaxial) digital audio input, switch to 1-Port SPDIF/Toslink output

and one L/R analog audio output and one headphone output

l  Uses 192KHZ/24bit DAC

l   Support digital audio formats: Dolby AC3, DTS, THX, HDCD, LPCM for SPDIF output

l   Support LPCM digital audio converted to analog audio output

l   Automatic identification input digital audio signal format, when non-LPCM input, analog output mute

l   Input status indication. When no audio or error data input, the input port indicator starts to flash

l  A key switch, easy operation

l   Headphone amplifier output, can drive the general 3.5mm earphone

l  High tone quality, low noise

l  Power-off memory

l  DC5V/1A power adapter

SPECIFICATIONS:                                      ADSW0006M1

Analog Audio Output Support audio format ………………….…….…….….….……………… PCM/LPCM

DAC sample frequency range…………………………………………………………………. 32~192 KHz

DAC Bit rate range…………………………………………………………………………………..16~24 Bit

Digital input level………………………………………………………………………………..0.1~1Volts p-p

L/R output level(1kHz@0dB).....................................................................................................1V RMS

Headphone output power (1kHz@0dB RL=32)……………………………………………………….30mW

SNR @ 0dB(CCIR/ARM)………………………………………………………………………………….90dB

Distortion……………………………………………………………………………………………………0.1%

Frequency response……………………………………………………………………………..20Hz~20KHz

Max working current …………………………………………………………….……….…….….……100mA

Power adapter format Input ……......….….…….…….…….….. AC 100V~240V 50HZ/60Hz, DC5V/1A

Operating Temperature range ……..…………….………………………………………………-10 to +55°C

Storage Temperature range………………………………………………………………………-20 to +60°C

Operating Humidity range ………………………….….……….………...10 to 90%RH (No Condensation)

Storage Humidity range………………………….….……….……………..5 to 95%RH (No Condensation)

Case Dimension (L x W x H) ………………………………….……………………………..85x62x21 (mm)

Weight …….…………………………….………………………………………….……………………….130g
