Product Details
| Brand Name | ASK | Model Number | HD1TO1LR | |
| Place of Origin | Guangdong, China |
Product Description
Specifications

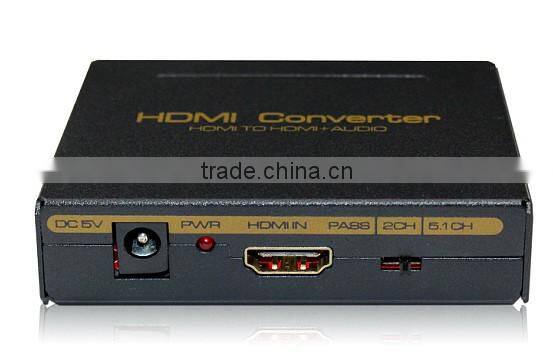

One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)outputExtractor with Toslink and L&R Audio
Need DC5V/1A power suppl

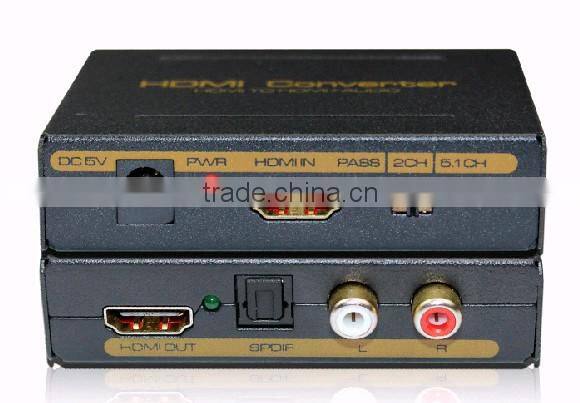

One HDMI Input to One HDMI Output, One SPDIF Audio Output and One RCA R/L Stereo Audio Output
FEATURES
One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
Output audio support: SPDIF+R/L analog Audio Output,SPDIF(Optical output only support Stereo
Audio)
When use SPDIF enjoy Optical Audio,Do not connect L/R .
Input Resolution: up to 1080P(50/60Hz)
LED indication: when source or sink is working, LED relative to is light.
No loss of quality
Installs in minutes
Need DC5V/1A power supply
| HDMI resolution | 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
| Support video color format | Support video color format |
| Audio output | L/R+SPDIF |
| Max bandwidth | 225MHz |
| Max baudrate | 6.75Gbps |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
| Input cable distance | ≤15m AWG26 HDMI standard cable |
| Output cable distance | ≤20m AWG26 HDMI standard cable |
| Max working current | 500mA |
| Power adapter format | Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A |
| Operating Temperature range | (-15 to +55°C) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 84.5X61.8X21 (mm) |
| Weight | 132g |
Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
- 1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
- 2. All parts will be free from the strong shake, hit, fall.
- 3. Touching the power adaptor with the wet hands is prohibited.
- 4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
- 5. Pls turn the power off when the machine is not used for long time.
- 6. Pls do not open the cover and do not touch the inside parts.
- 7. Pls use the original factory power adaptor.
Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
Serial NO | Trouble Description | Cause and Ways to deal with |
1 | Non-Power-Connected | 1,Check if the power adaptor head is truly and correctly inserted the power socket. 2,Check the power switch if it is in on status. |
2 | No Picture | 1,Pls to make sure that the TV is on and has been connected with the machine. 2,To check if the signal source is on and well connected. 3,Check the system connection quality. 4,Check if the line is all good quality. 5,Check the cable quality |
3 | Obscure Picture | 1,To try again to connect the cable to be free from the unsuccessful connection. 2,HDMI Cable Quality |
