Good Reliability 12mm Photoresistor GL125 series Biggest Manufacturer in China
- shenzhen
You May Like
-
LDR Photoresistor GL10516
-
7mm Temperature Stable Photoconductive Cell GL7516
-
High Quality LDR GL5539 for Lighting Control
-
Small Volume Hotsales Photoresistors Free samples
-
4MM GL4548-1 LDR Photo Sensor/Photoresistor/Photocell for Light Control
-
4MM GL4537-2 Electric Light Resistor/Cds Light Sensor/Photocell
Product Details
| Place of Origin | China | Brand Name | Senba | |
| Model Number | GL12537-1 | Type | Other, Photoresistor, GL12537-1 | |
| Technology | Metal Oxide | Package Type | Throught Hole | |
| Resistance | 5-10 | Resistance Tolerance | 0.1 | |
| Rated Power | 100 | Operating Temperature | -30~70 |
Product Description
Specifications
GL125 series PhotoreistorMax. voltage: 250VDC
Max. power:200mw
Light resistance: 5-100Kohms
Spectrum peak value:560nm

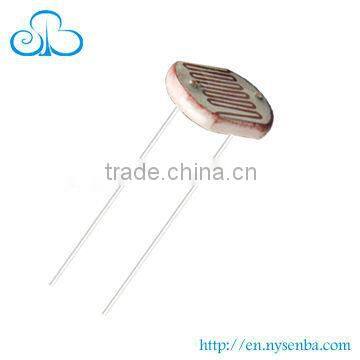

12mm CDS Photoresistor SENBA GL12537-1
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes
with luminance variation .The photoresistor can be manufactured with different figures and illuminated
area based on this characteristic.Photoresistor is widely used in many industries, such as
toys,lamps,camera,etc. Systems 7 including the model of GL12516,GL12528,GL12537-1,GL7537-2,GL12539.
Performances and Features
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Specifications
Specification | Type | Max. Voltage (VDC) | Max. power (mw) | Environmental temp. | Spectrum peak value (nm) |
φ12 series | GL12516 | 250 | 200 | -30~+70°C | 560 |
GL12528 | 250 | 200 | -30~+70°C | 560 | |
GL12537-1 | 250 | 200 | -30~+70°C | 560 | |
GL12537-2 | 250 | 200 | -30~+70°C | 560 | |
GL12539 | 250 | 200 | -30~+70°C | 560 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) |
r100/10 | Response time (ms) | Illuminance resistance Fig. No. | |
Increase | Decrease | |||||
φ7 series | 5-10 | 1 | 0.6 | 30 | 30 | 3 |
10-20 | 2 | 0.6 | 30 | 30 | 3 | |
20-30 | 3 | 0.7 | 30 | 30 | 4 | |
30-50 | 5 | 0.8 | 30 | 30 | 4 | |
50-100 | 8 | 0.8 | 30 | 30 | 6 | |
Senba photoresistor Sales summary (Unit:million sticks)
2000 2001 2002 2003 2004 2005 2006 2007 2008
