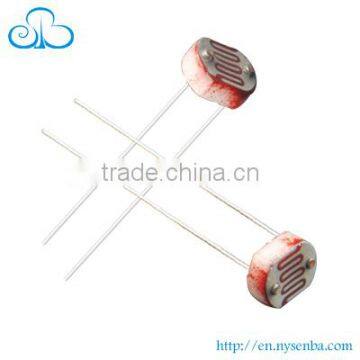

Senba GL55 Series Light Dependent Sensor Cds Photoresistor
- ShenZhen
- T/T Credit Card
You May Like
-
20MM Optical Sensors/Photo Detectors/CdS Cells
-
5MM, 10-20KOHM Photocell Light Sensor For Street Lights GL5528
-
5MM Miniature Photocell for Lighting Detect GL5649
-
20MM Light Conductive Cell/Resistor/Sensor 30-50KOHM GL20537-2
-
20MM Light Dependent Resistor/Sensor 20-30KOHM GL20537-1 for Garden Light
-
20MM Outdoor LDR Photo Sensor/Light Sensor GL20528 (10-20KOHM)
Product Details
| Place of Origin | Guangdong, China | Brand Name | Senba | |
| Model Number | GL55 Series | Type | Photoresistor | |
| Technology | Ceramic Composition | Package Type | Other, DIP | |
| Operating Temperature | -30~70 |
Product Description
Specifications
Light Sensitive Resistor1. High sensitivity,Fast response
2. Good spectrum characteristic
3. Factory Price
4. Sample Free
Senba GL55 Series Light Dependent Sensor Cds Photoresistor
5mm Ceramic Mini LDR photo sensor , best price from largest manufacurer
General Theory:
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic........
Performances and Features
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Types and Specifications
Specification | Type | Max. Voltage (VDC) | Max. power (mw) | Environmental temp. | Spectrum peak value (nm) |
φ5 series | GL5516 | 150 | 90 | -30~+70 | 540 |
GL5528 | 150 | 100 | -30~+70 | 540 | |
GL5537-1 | 150 | 100 | -30~+70 | 540 | |
GL5537-2 | 150 | 100 | -30~+70 | 540 | |
GL5539 | 150 | 100 | -30~+70 | 540 | |
GL5549 | 150 | 100 | -30~+70 | 540 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) |
r100/10 | Response time (ms) | luminance resistance Fig. No. | |
Increase | Decrease | |||||
φ5 series | 5-10 | 0.5 | 0.5 | 30 | 30 | 2 |
10-20 | 1 | 0.6 | 20 | 30 | 2 | |
20-30 | 2 | 0.6 | 20 | 30 | 3 | |
30-50 | 3 | 0.7 | 20 | 30 | 4 | |
50-100 | 5 | 0.8 | 20 | 30 | 4 | |
100-200 | 10 | 0.9 | 20 | 30 | 5 | |
Senba photo cell Sales summary (Unit:million sticks)
