Home > Products > LDR Sensor > 20mm LDR(light dependent resistor)
20mm LDR(light dependent resistor)
- shenzhen
- T/T Credit Card
You May Like
-
Good Reliability 12mm Photoresistor GL125 series Biggest Manufacturer in China
-
LDR Photoresistor GL10516
-
7mm Temperature Stable Photoconductive Cell GL7516
-
High Quality LDR GL5539 for Lighting Control
-
Small Volume Hotsales Photoresistors Free samples
-
4MM GL4548-1 LDR Photo Sensor/Photoresistor/Photocell for Light Control
Product Details
| Place of Origin | Guangdong, China | Brand Name | Senba | |
| Model Number | GL20537-1 | Type | Other, Photoresistor, GL20537-1 | |
| Technology | Metal Oxide | Package Type | Throught Hole | |
| Resistance | 5-10 | Resistance Tolerance | 0.1 | |
| Rated Power | 500 | Temperature Coefficient | see following | |
| Operating Temperature | -30~70 |
Product Description
Specifications
LDR(light dependent resistor) GL20537-1Max voltage:500VDC
Max power:500mw
Light resistance:5-100Kohms
Dark resistance:1-8M

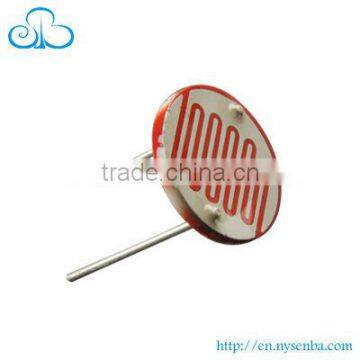

20mm CDS LDR Photoresistor SENBA GL20537-1
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminated area based on this characteristic.
model: GL20516,GL20528,GL20537-1,GL20537-2,GL20539.
Performances and Features
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Specifications
Specification | Type | Max. Voltage (VDC) | Max. power (mw) | Environmental temp. | Spectrum peak value (nm) |
φ20 series | GL20516 | 500 | 500 | -30~+70°C | 560 |
GL20528 | 500 | 500 | -30~+70°C | 560 | |
GL20537-1 | 500 | 500 | -30~+70°C | 560 | |
GL20537-2 | 500 | 500 | -30~+70°C | 560 | |
GL20539 | 500 | 500 | -30~+70°C | 560 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) |
r100/10 | Response time (ms) | Illuminance resistance Fig. No. | |
Increase | Decrease | |||||
φ20 series | 5-10 | 1 | 0.6 | 30 | 30 | 3 |
10-20 | 2 | 0.6 | 30 | 30 | 3 | |
20-30 | 3 | 0.7 | 20 | 30 | 4 | |
30-50 | 5 | 0.7 | 20 | 30 | 4 | |
50-100 | 8 | 0.8 | 20 | 30 | 6 | |
