Home > Products > LDR Sensor > High Sensitivity 5-100Kohms Photocell with Metal Case

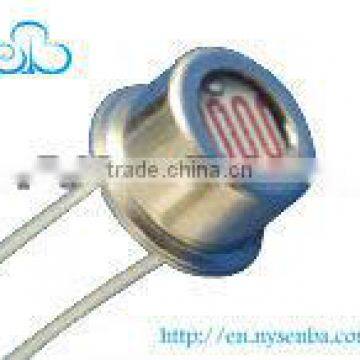

High Sensitivity 5-100Kohms Photocell with Metal Case
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Senba | |
| Model Number | GL5549 | Type | Other, Photoresistor, GL5549 | |
| Technology | Ceramic Composition | Package Type | Throught Hole | |
| Resistance | 5-100Kohms | Resistance Tolerance | 0.1 | |
| Rated Power | 100mw | Temperature Coefficient | see following | |
| Operating Temperature | -30-+70 celsius degrees |
Product Description
Specifications
LDR sensor with metal casemax. voltage: 150VDC
max. power: 100mw
light resistance: 5-100Kohm
fast response,small volume
Dia. 5mm Cheapest Photocell sensor with metal housing
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.
Performances and Features
Coated with epoxy
Good Reliability
High Sensitivity
Small Volume
Fast Response
Good Spectrum Characteristic
Applications
Switch
Light control
Electronic toy
Light control lamp
Photoelectric control
Industrial control
Camera automatic photometry
Annunciator
Types and Specifications
Specification | Type | Max. Voltage (VDC) | Max. power (mw) | Environmental temp. | Spectrum peak value (nm) |
φ5 series | GL5516 | 150 | 90 | -30~+70 | 540 |
GL5528 | 150 | 100 | -30~+70 | 540 | |
GL5537-1 | 150 | 100 | -30~+70 | 540 | |
GL5537-2 | 150 | 100 | -30~+70 | 540 | |
GL5539 | 150 | 100 | -30~+70 | 540 | |
GL5549 | 150 | 100 | -30~+70 | 540 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) |
r100/10 | Response time (ms) | luminance resistance Fig. No. | |
Increase | Decrease | |||||
φ5 series | 5-10 | 0.5 | 0.5 | 30 | 30 | 2 |
10-20 | 1 | 0.6 | 30 | 30 | 2 | |
20-30 | 2 | 0.6 | 30 | 30 | 3 | |
30-50 | 3 | 0.7 | 30 | 30 | 4 | |
50-100 | 5 | 0.8 | 30 | 30 | 4 | |
100-200 | 10 | 0.9 | 30 | 30 | 5 | |
