Home > Products > Fresnel Lens > 13mm Dome Human Motion Detector fresnel lens

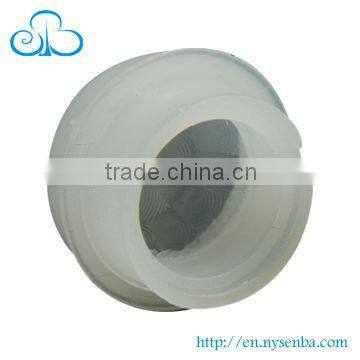

13mm Dome Human Motion Detector fresnel lens
US$ 0.064 - 0.19
/ Piece
3000 Pieces(Min. Order)
- Shenzhen or HK
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Senba | |
| Model Number | S9001 | Material | Other, High density polyethylene | |
| Usage | Optical | Structure | Plano-convex | |
| Shape | Other, Spherical, Dome |
Product Description
Specifications
Fresnel lensOverall size:13mm
Focal length: 6mm
Detectable distance: 5m
Viewing angle: 120 degree
S9001 Cheap optical fresnel lens
Fresnel lens arrays designed for passive infrared sensor.the The optical surfaces are increases lens sensitivity for PIR SENSOR applications.
Specification:
Overall size:13mm
Focal length: 6mm
Detectable distance: 5m
Viewing angle: 120°
Features:
Designed for passive infrared sensor applications
Well suited for compact, low profile sensors
Can be used in applications involving security, lighting controls and environmental controls
Optimized for dual element pyroelectric devices
White light immunity to reduce false triggers
UV resistant for outdoor applications
Designed for uniform sensitivity to reduce electronic gain
