3Z series tractor mounted disc ridger(TM)
- 100 Set / Sets per Month
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Diesel | Power(W) | 50HP | |
| Certification | ISO9001 | Warranty | one year | |
| Use | ridger | Place of Origin | Shandong, China | |
| Brand Name | TM | Model Number | 3Z140 | |
| Weight | 190KG | Dimension(L*W*H) | 1500*1000*700mm | |
| After-sales Service Provided | No overseas service provided |
Product Description

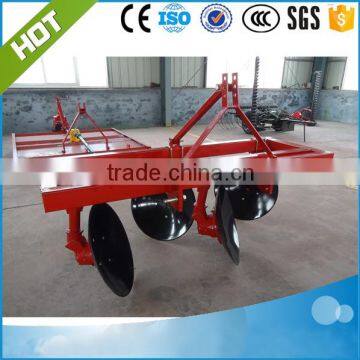

farm disc ridger:
Used for making ridges for planting tobacco, potato and other vegetables. The ridger is fully adjustable for giving different accurate row width. To obtain the correct ridge profile and retain soil flow, the high grade mould boards are adjustable. The ridger can also be used for earthing up the crops sown in rows.
the material of the disc is superior 65Mn,the products are made of heat-treatment processing.it has the reasonable structure, rugged,transportation convenience,easy to adjusted,facilitate the use of maintenance,match a wide range of characteristics,and it can complete the breaking crop,ridge operation one-time.
Model | 3Z-80 | 3Z-120 | 3Z-140 | 3Z-180 | 3Z-260 |
Name | S/ D row ridger | S/ D row ridger | S row ridger | S/ D row ridger | S/ D row ridger |
Working width | 800 (mm) | 1200 (mm) | 1400 (mm) | 1800 (mm) | 2600 (mm) |
Ridging width (mm) | 200-450 | 200-450 | 300-1000 | 200-450 | 300-600 |
Ridging heigh(mm) | 150-240 | 150-240 | 150-330 | 150-260 | 150-240 |
Dia. of disc (mm) | 460 | 460 | 710 | 560 | 660 |
Nos. of disc | 4 | 4 | 2 | 4 | 4 |
Matched power (hp) | 15-20 | 25-70 | 50-80 | 55-80 | 80 |
(L*W*H) | 1200*1900*1000 | 900*1700*1200 | 950*1900*1410 | 950*2050*1300 | 1350*2700*1420 |
weight (kg) | 160 | 180 | 200 | 220 |
|
