1GN-180 Rotavator Rotary Tiller With Good Quality

FOB Price

US$ 100 - 2,000 / Unit

1 Unit(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Farm Cultivator
Power Type	Diesel	Power(W)	37kw
Certification	ISO9001	Warranty	12 months
Use	cultivator	Place of Origin	Shandong, China
Brand Name	SDTM	Model Number	1GN-180
Weight	405kg	Dimension(LWH)	102020561152mm
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

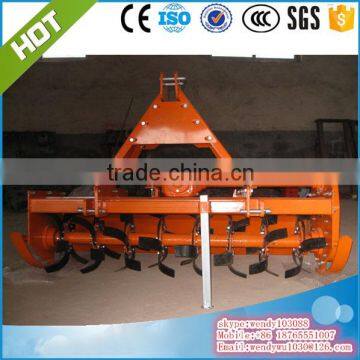

rotary tiller

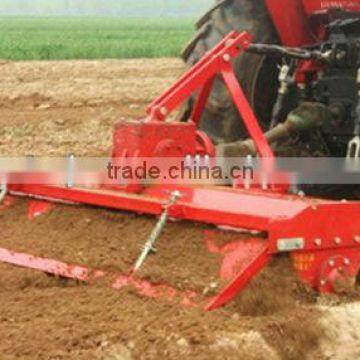

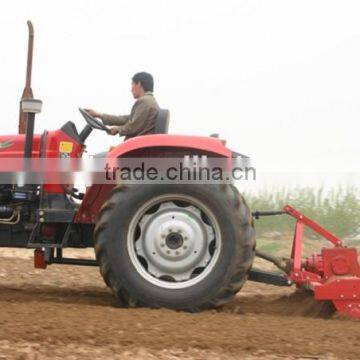

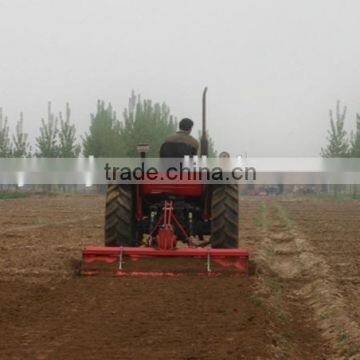

rotary tiller is adopted middle gear transmission system, mounted with the tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc. during operation.

Model		1GN-100	1GN-115	1GN-120	1GN-125	1GN-140	1GN-150	1GN-160	1GN-180	1GN-200	1GN-220	1GN-250			1GN-300
(hp) Matched power		12-15	15-18	15-18	18-20	20-25	25-30	30-40	50-55	55-75	60-80	75-80			90
(cm) .Working width		100	115	120	125	140	150	160	180	200	220	250			300
NO. of knife		22	22	26	26	30	34	38	50	54	58	62			70
Type of knife		IT225							IT245
(kg) Total weight		200	210	215	220	230	240	251	415	430	445	460	490
(kg) Total weight		192	200	25	210	220	230	240	405	420	435	450	480
(mm) O.D.	(L)	850	900	900	900	900	900	900	1020	1020	1020	1020	1020
	(W)	1050	1310	1350	1450	1600	1740	1880	2056	2396	2636	2816	3316
	(H)	950	1000	1000	1000	1000	1000	1000	1152	1152	1152	1152	1152
(cm) working depth		8-14				12-18			12-16
(cm) working depth		10-16				14-20			14-18
(r/min) Export axle rotary speed		530-730							540	540	540-720			540-720
(r/min) Knife axle rotary speed		180-250							225	226	200	236		240
(km/h) Walking speed		1-4							2-5
(%) Rate of working depth		≥85
(cm) Soil level after worked		≤5
(%) Vegetation covered rate		≥55
(%) The rate of crushed soil		≥50
Linkage		(Standard three-point mounted)
