Agricultural Machine 60hp Tractor 3-point Rotary Tiller With Best Price
- Qingdao
- T/T L/C Credit Card PayPal
You May Like
-
Agricultural Equipment Tractor PTO Rotary Tiller With Low Price
-
Agricultural Machinery Kubota Tractor Rotary Tiller for Sale
-
New Condition 50hp Tractor 3 Point Hitch Rotary Tiller
-
Hand Tractor Rotary Tiller , Walking Rotary Tiller With Seat
-
Agricultural Rotavator The Rotary Tiller
-
Professional Rotary Tiller
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Diesel | Power(W) | 25-125HP | |
| Certification | ISO9000 | Warranty | one year | |
| Use | tilling | Place of Origin | Shandong, China | |
| Brand Name | TM | Model Number | 1GQN-150 | |
| Weight | 262KG/SET | Dimension(L*W*H) | 1730mmx1350mmx800mm | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

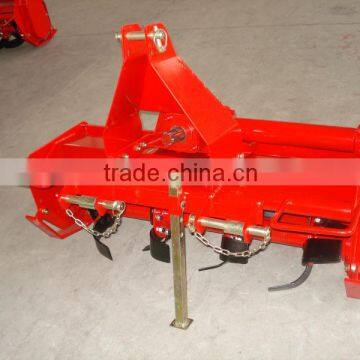

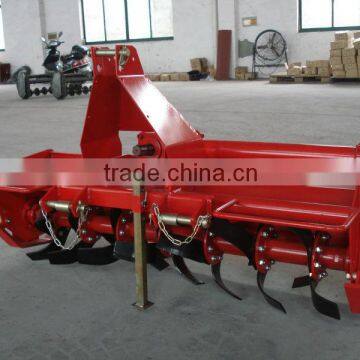

Agricultural machine 60hp tractor 3-point rotary tiller with best price
Rotary Tiller (Rotavator) is better than conventional tillage equipments because it saves time, fuel, soil compaction & wear and tear of the tractor as it accomplishes better pulverization in shortest time. It leaves the worked soil perfectly levelled. No need for multiple operations of cultivator, disc harrow and leveller. Puddling in wet fields is done smoothly, quickly & efficiently. Sealed bearings prevent moisture/mud entry, resulting in longer bearing protection.
1GQN series tractor rotary tiller is adopted middle gear transmission system, mounted with the tractor by the 3 point suspension. Tractor’s wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. This cultivator can be used on dry and paddy field.
1. This mounted rotary tiller covers the tractor wheel track perfectly.
2. The rotary cultivator saves labor and reduces the cost.
3. It is a tractor mounted rotary tiller for 18-80hp tractor.
4. The blade is 65Mn/60Si2Mn steel .
Technical specifications:
Model | 1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | |||
Matched power | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 90 | |||
.Working width(cm) | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | |||
NO. of knife | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 70 | |||
Type of knife | IT225 | IT245 | |||||||||||
Total weight(kg) | 200 | 220 | 230 | 240 | 251 | 415 | 430 | 445 | 460 | 490 | |||
192 | 210 | 220 | 230 | 240 | 405 | 420 | 435 | 450 | 480 | ||||
O.D.(mm) | (L) | 850 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | ||
(W) | 1050 | 1450 | 1600 | 1740 | 1880 | 2056 | 2396 | 2636 | 2816 | 3316 | |||
(H) | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | |||
working depth(cm) | Dry field | 8-14 | 12-18 | 12-16 | |||||||||
Paddy field | 10-16 | 14-20 | 14-18 | ||||||||||
Export axle rotary speed(r/min) | 530-730 | 540 | 540 | 540-720 | 540-720 | ||||||||
Knife axle rotary speed(r/min) | 180-250 | 225 | 226 | 200 | 236 | 240 | |||||||
Walking speed(km/h) | 1-4 | 2-5 | |||||||||||
Rate of working depth (%)
| ≥85 | ||||||||||||
Soil level after worked(cm) | ≤5 | ||||||||||||
Vegetation covered rate (%) | ≥55 | ||||||||||||
The rate of crushed soil (%) | ≥50 | ||||||||||||
Linkage | Standard three-point mounted | ||||||||||||
