Intrinsically Safe AC Generator High Voltage

1.Independent switch access, with complete protection function, can be quickly and networks or exit;

2.Man-machine interface, easy operation, real-time display of power quality data;

3. Consecutive fast compensation, dynamic response time <10ms;

4.No impact on the grid, adjust more smoothly, safe, high reliability;

5.With 13 times and the following harmonic reduction features;

6.Rapid support voltage sags, voltage fluctuations and flicker suppressing effect is remarkable;

7.Reactors and compensation using sub-structure, small size, easy installation and transportation;

8.The use of explosion-proof water cooling mode, high thermal efficiency, low noise.

Intrinsically Safe  AC Generator High Voltage

Intrinsically Safe  AC Generator High Voltage

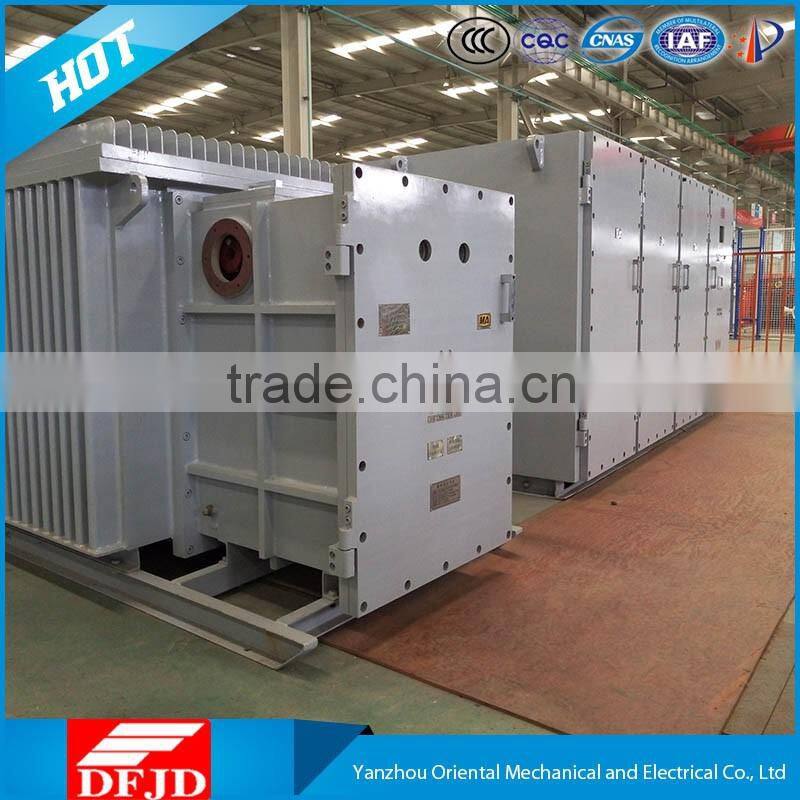

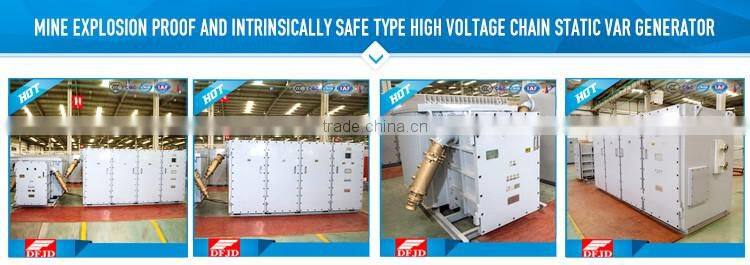

WJL-2500/6 mine flameproof and intrinsically safe high voltage cascaded static var generator is suitable for underground substation area or distribution point, etc, completing reactive power compensation, stable voltage, improve power factor more than 0.98, a large margin to improve the transmission capacity of the main line and power system stability in a relatively concentrated way.

Intrinsically Safe  AC Generator High Voltage

(1) The independent switch access mode, with complete protection functions, can be quickly connected or exit;

 (2) Chinese man-machine interface type operation, simple and convenient, real-time display of power quality data;

(3) Continuous and fast compensation, dynamic response time is less than 10ms;

(4) There is no impact on the power grid, the adjustment is more smooth, safe, high reliability;

(5) Having the  harmonic suppression function with 13 times and the following;

(6) Rapid support voltage drop, suppress voltage fluctuation and flicker effect significantly;

(7) The reactor and compensator adopts fission structure, small volume, easy to install and transport;

(8) Using the explosion-proof water cooling method, high efficiency, low noise.
