Rubber Drum Vulcanized Machine
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Double Elephants | Model Number | from DLG710*1450 to DLG1500*1750,please check below details | |
| Voltage | 220/380V 50/60HZ | Power(W) | 3KW | |
| Dimension(L*W*H) | from 3170*2400*2600 to 3680*5000*5000 | Weight | from 20T to 32T, please check below details | |
| Certification | ISO and CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

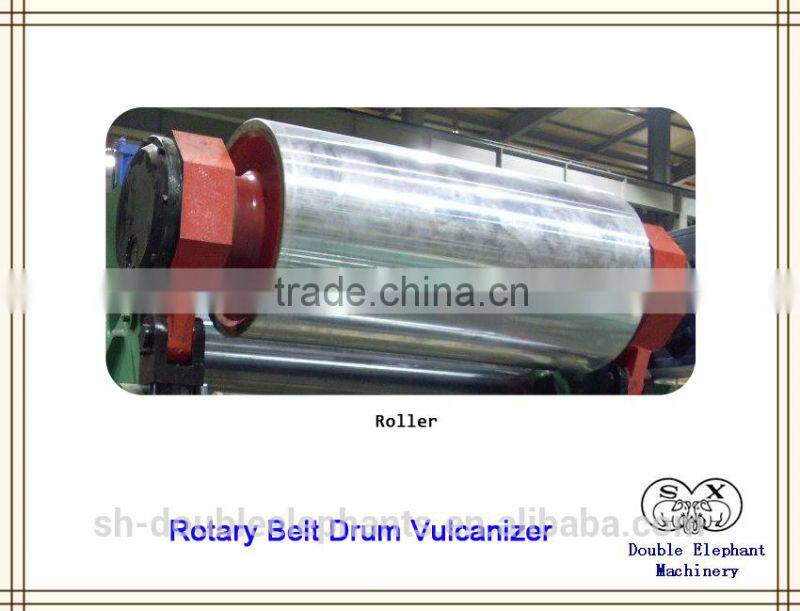

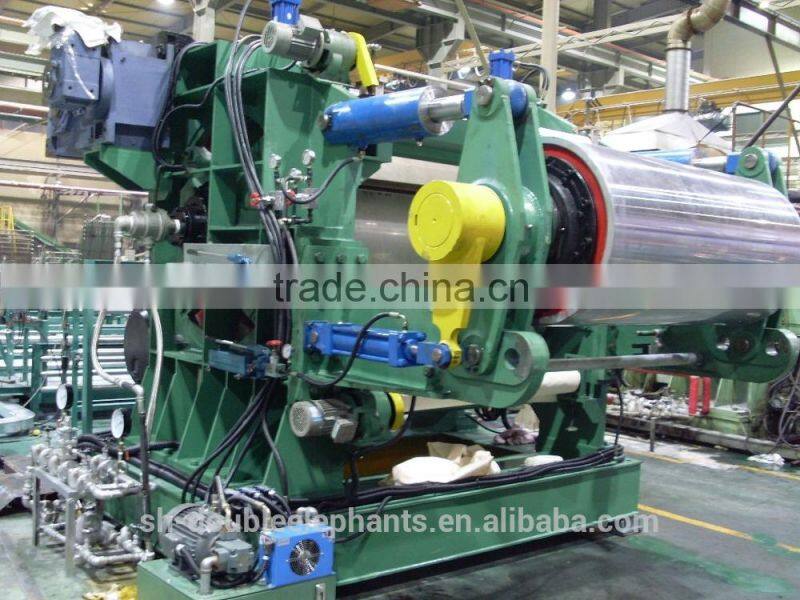

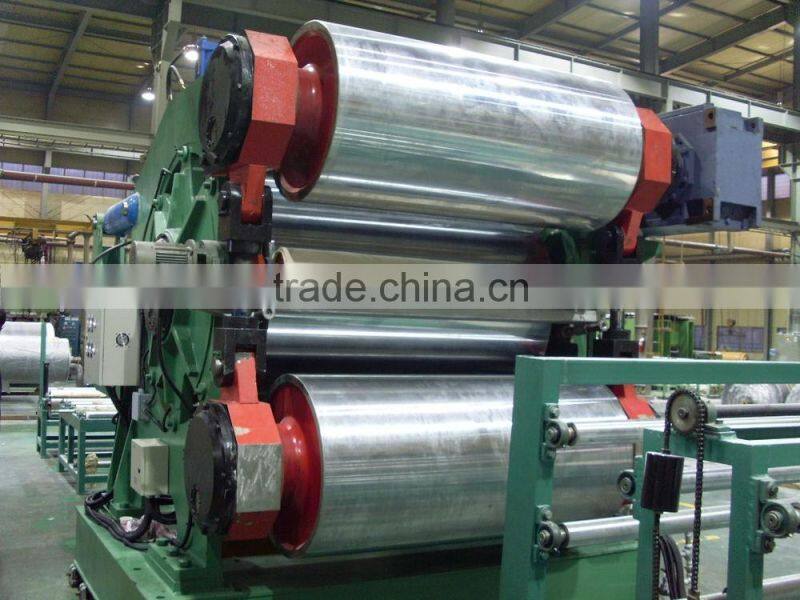

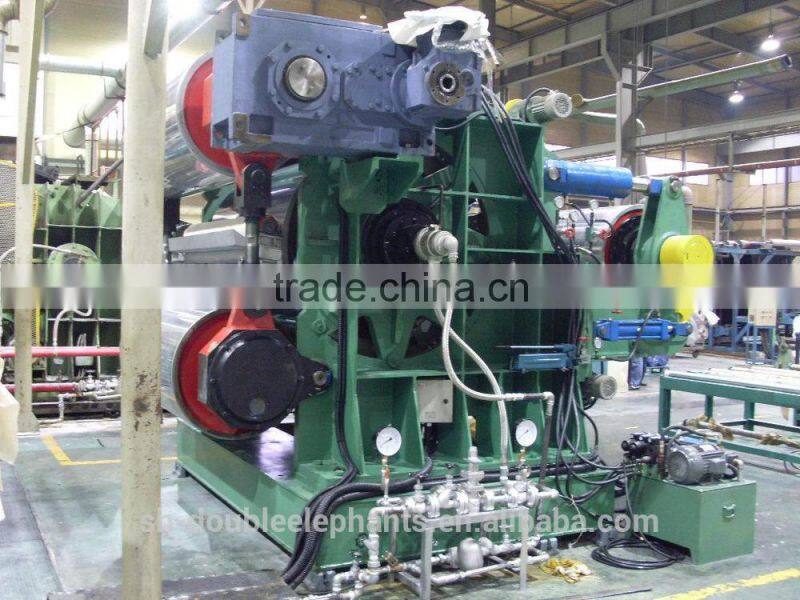

drum making machine,drum type rubber vulcanizing machine,Drum Type Belt Vulcanizing Plant
Features:
1 It has the function of automatic pressure retrieve and when oil pump stops overtime, oil way configure is more reasonable and reliable.
2 Heating temperature, vulcanize time, vulcanize pressure, pressure compensate can be set, and operatng is convenient.
3 INdependent oil jar structure, exchange is convenient. Pillar adopts chilled cast iron, has high wearable and long life.
4 Configure and slect machine type according to request.
Type | DLG ¢ 710*1450 | DLG ¢ 1000*1450 | DLG ¢ 1250*1600 | DLG ¢ 1250*1750 | DLG ¢ 1500*1750 |
Drum diameter mm | 710 | 1000 | 1250 | 1250 | 1500 |
Working width mm | 1450 | 1450 | 1600 | 1750 | 1750 |
Steel belt force N | 38*104 | 38*104 | 38*104 | 38*104 | 38*104 |
Liner speed mm | 0.04~1.12 | 0.3~2.0 | 0.3~1.5 | 0.3~1.5 | 0.3~1.5 |
Curing pressure MPa | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 |
Steam pressure used MPa | 0.6 | 0.6 | 1 | 1 | 1 |
Main motor power kw | 3 | 3 | 3 | 3 | 3 |
Welding power kw | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 |
Overall dimension mm | 3170*2400*2600 | 3170*2400*2600 | 3680*4000*4000 | 3680*4150*4000 | 3680*5000*5000 |
Weight t | 20 | 25 | 28 | 30 | 32 |
COMPANY INFORMATION
Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.
GUARANTEE & AFTER-SALE SERVICE
1,One year guarantee for whole machine except tubes
2,24 hours technical support by mail
3,service station in your country, quick response
drum making machine,drum type rubber vulcanizing machine,Drum Type Belt Vulcanizing Plant
