open mill mixing
- 10 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Rubber Mixer | |
| Place of Origin | Jiangsu, China | Brand Name | Double elephants | |
| Model Number | Mixing mill | Voltage | 380V/220HZ | |
| Dimension(L*W*H) | According to different types | Weight | 1 Ton- 3 Ton | |
| Certification | ISO, CE certificate | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

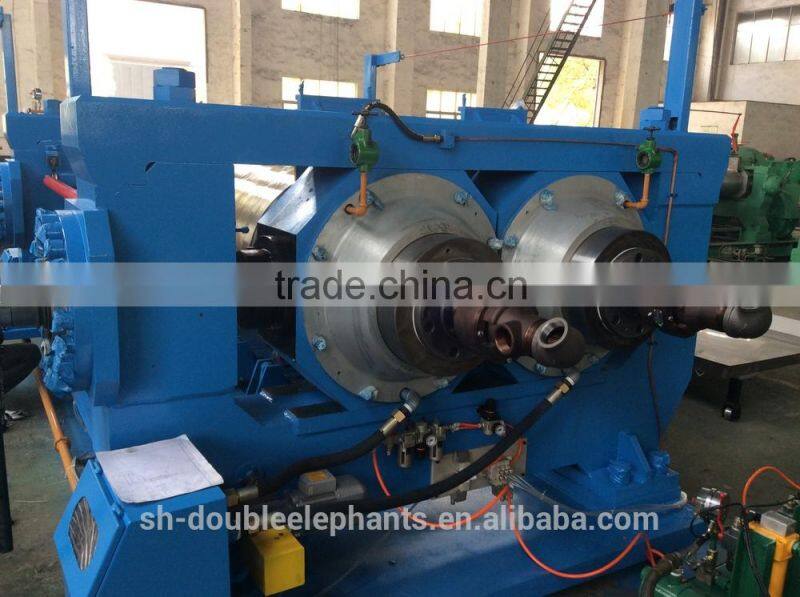

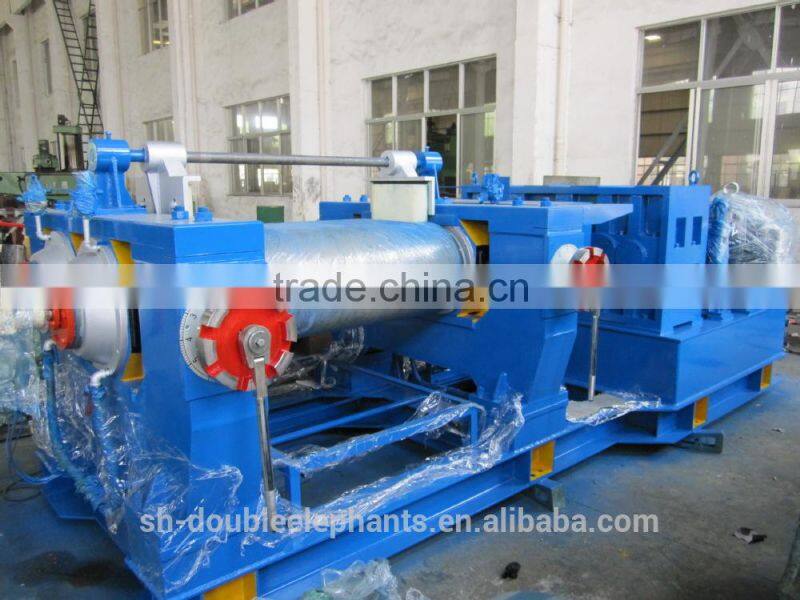

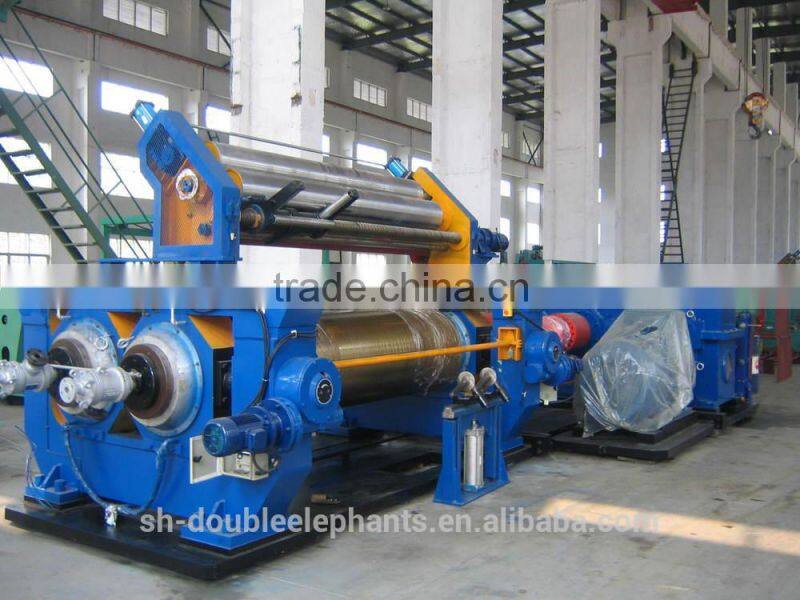

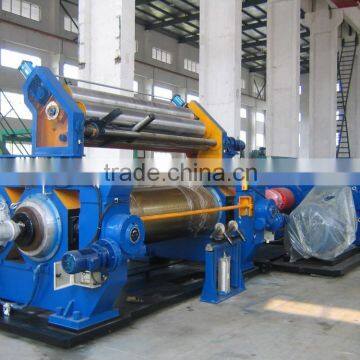

open mill machine,roller mill ,rolling mill roll
Technical data of XK-160/200/250mm Mixing mill
Specification Type | Roller diaX length(MM) | Front roller linear velocity (M/MIN) | Velocity ratio of roller | Feeding quantity eachtime(KG) | Max. distance regulation (MM) | Motor Power (KW) | Overall Dimension (LxWxH)(MM) |
X(S)K-160 | 160X320 | 8.95 | 01:01.4 | 1-20 | 4.5 | 5.5 | 1120X920X1295 |
X(S)K-250 | 250X620 | 15.2 | 01:01.1 | 10-15 | 8 | 18.5 | 3220X1500X1290 |
X(S)K-360 | 360X900 | 16.26 | 01:01.3 | 15-20 | 10 | 30 | 3920X1650X1725 |
X(S)K-400 | 400X1000 | 18.65 | 01:01.3 | 25-35 | 10 | 40 | 4380X1710X1880 |
X(S)K-450 | 450X1200 | 23.85 | 01:01.3 | 30-50 | 8 | 55 | 5050X1920X1870 |
X(S)K-560 | 560/510 X1530 | 27.61 | 01:01.3 | 50-60 | 12 | 95 | 5830X2300X2000 |
X(S)K-550 | 550X1500 | 27.175 | 01:01.3 | 50-65 | 15 | 90(110) | 6040X2100X1625 |
XKY-660 | 660X2130 | 32.45 | 01:01.1 | 165KG | 15 | 180 | 7450X3660X2080 |
XKR-660 | 660X2130 | 28.6 | 01:01.2 | 165KG | 15 | 245 | 7465X3660X2080 |
Features:
1) The mixer is mainly applicable for both natural and synthetic rubber. processing: thermal mixing of batches and finish squashing.2) Also it can be used for plastic industry and pigment industry as subsidiary application .
COMPANY INFORMATION
Shanghai double elephants rubber and plastic machinery co., LTD., founded in 1994, specializing in the production and distribution group of companies affiliated factory production of rubber and plastic machinery, PVC film, artificial leather In addition, we also canaccording to user requirements design and manufacture non-standard equipment.We export to more than 40 countries and regions, deeply user high praise.
GUARANTEE & AFTER-SALE SERVICE
1,One year guarantee for whole machine except tubes
2,24 hours technical support by mail
3,service station in your country, quick response
open mill machine,roller mill ,rolling mill roll
