Product Details
| Place of Origin | China | Brand Name | wandeshun | |
| Model Number | DL series | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Model Number: DLBrand Name: wandeshun
Place of Origin: Jiangsu, wuxi
Inverted Vertical Type Drawing machine
Specifications
Max inlet: 40mm
For low, medium, stainless steel wire
Suitable for fastner industrial and supermarket shelf
20% compression
Inverted vertical wire drawing machine
Description
Inverted Vertical Drawing Machine is developed for the non-slip drawing of medium&low carrbon steel wire, special shaped steel wire and nonferrous metals with thick & medium diameters.
It is especislly suitable for the drawing of medium & low carbon steel wire in standard parts and supermaket shelf industriy.
The maximum inlet diameter can reach 40mm and diameter of capstan is 550-1400mm.
Transmission part of the system can apply cycloidal speed reducer, harden gear surface reducer or rocker reducer. Its electric system applies international famous brand frequency converter with performance.
Features of the equipment
1. It is applicable for continuous production process of coil with heavy charing box.
2. Easy operation and reliable control enables safe production and conveninent maintenance.
3. Application of 3-phase AC variable-frequency speed adjustment realizes smooth stepless speed regulation and saves more than 30% electric power.
Main Parameters
Items | Unit | Type |
Diameter of Capstan | mm | Φ550-Φ1400 |
Max diameter of inlet wire | mm | Φ40 |
Intensity of material | M pa | ≤1200 |
Compression rate | % | 15-30 |
Wire drawing line | m/s | 2.5 |
Single motor power | Kw | 11-110 |

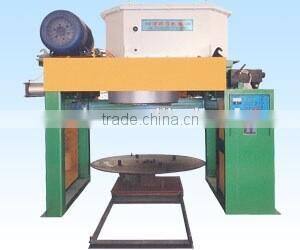

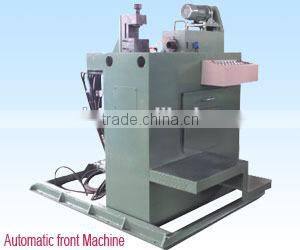

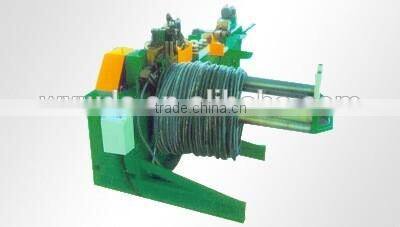

Pictures
Warmly welcome chat online
3. Pictures
Specification
carbon steel wire making machine
Items | Unit | Type |
Diameter of Capstan | mm | Φ550-Φ1400 |
Max diameter of inlet wire | mm | Φ40 |
Intensity of material | M pa | ≤1200 |
Compression rate | % | 15-30 |
Wire drawing line | m/s | 2.5 |
Single motor power |
Successful experience / Markets
Be up to the international level. Our lines and related complete equipment have been exported to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, etc.
about us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran,Turkey and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
