Wire Drawing Machine for Making Nail
- shanghai
- T/T L/C Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | wandeshun | |
| Model Number | LW-1-560 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia,Uzbekistan.Iran Kenya, South Africa and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Main products:
Straight line drawing machine
Water tank wire drawing machine
Aluminium wire drawing machines
Vertical wire drawing machine

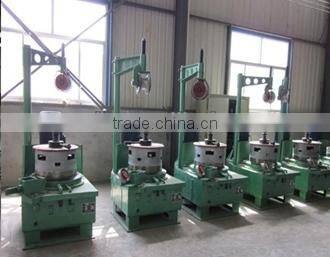

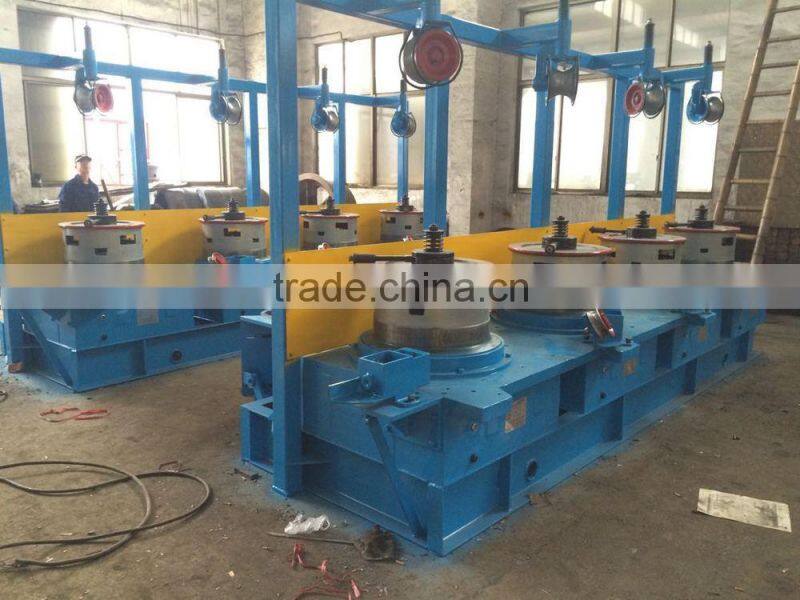

Pulley wire drawing machine
Pulley wire drawing machine is our star products
Specifications
1.popular used for construction wire usage
2.low investmnt and high output
3.speed adjust on the carbinet
SUMMARY:
1. certify by CE and ISO 9001
2.Frequency speed control motor
3.Dry drawing and wet drawing
4.Operator:1 line with 1 worker
contactor: Miss helen
Structure:
The equipment consists of main reduction box,die casing,wheel frame,sash brace and
electrical control system.The spinning drawing blocks are driven by JZT series motor,with gear coupling runs changeful gears to reduce speed. The drawing blocks are verticaly fixed in sealed box body.The gear pair are lubricated with oil.
| Type | LW-1-6/560 |
| Material intensity | δb≥110kg/mm2 |
| Max diam of material | 6.5mm |
| Min diam of material | 2mm |
| Diam of block | 1-6/560 |
| Max average condensation | 30% |
| Total condensation | 78-88.5% |
| Max.speed of block | 245m/min |
| Total power | 18.5-30kw |
| Weight | 2000kg |
| Overal size | 1700x1150x1750mm |
