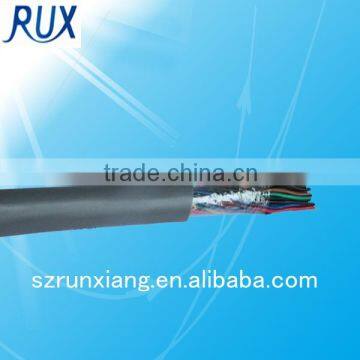

Hot sale cw1308 new 25 pair telephone cable
- 5000 Kilometer / Kilometers per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | runxiang | |
| Model Number | cw1308 |
Product Description
Specifications
25 pair telephone cable1.facttory price
2.LSZH outer sheath
3.Top quality and best price
4.Fast delivery
Hot sale cw1308 new 25 pair telephone cable
| Product Description |
Conductor
Number of pairs:25
Total number of the conductor:50
Material:BC-soft twisted copper wire
Wire guage:24WG
Length of lay≥15‰
Paired
Mylar:PET(25um)
Ribbon:white and blue
Ribbon specification:0.09×4mm
Insulation
Material:PVC
Min.thickness:0.15mm
Nominal thickness:0.175mm
Diameter over sheath:0.85±0.03mm
The color code you can see the order of the pairs
Outer jacket
Material:LSZH
Color:white
Outer sheath rip cord:200D*3
Nominal thickness:0.85±0.05mm
Min thickness:0.8mm
Outer jacket diameter:10.0±0.50mm
Mark:per client requirement
Test item
1.Single conductor DC resistance:max Ω/km≤97.8
2.Pairs capacitance unbalance pF/500m≤500
3.Between conductors dielectric strengthkv/min≥1.0
4.Insulation DC resistance MΩ.km≥50
5.The insulation wire core disconnection,mix line-constantly line,don't mix line
