Home > Products > Flat-Oval Duct Series > Oval Duct Forming Machine
Oval Duct Forming Machine
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | SBJX | |
| Model Number | SBJX-E3000 | Type | Other, HVAC Systems, Oval Duct Forming Machine |
Product Description

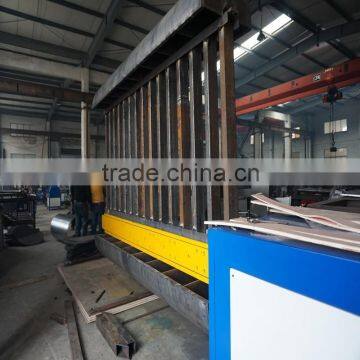

Oval Duct Forming Machine
Main Features of Oval Duct Forming Machine
flat oval Duct machine transforms smooth and corrugated round spiral duct into Flat-oval duct. Machine controlled by PLC, and the LCD UNIT on the operator’s panel stores all set parameters for easy recall by the operator when required.
Thickness range | 0.4-1.2mm |
Maximum duct length | 3000mm |
Arm range | 100mm |
Pre-forming standard | 150-1050mm |
Power | 18.5KW |
Net weight | 3500KG |
Gross weight | 4500KG |
Machine dimension | 5000×1100×1200mm |
Packaging size | 5650×1240×1430mm |
All dimensions are nominal The duct circumference is increased by approximately 0.7 percent in the stretching process | |
flat oval duct machine , ovalizer duct forming machine
