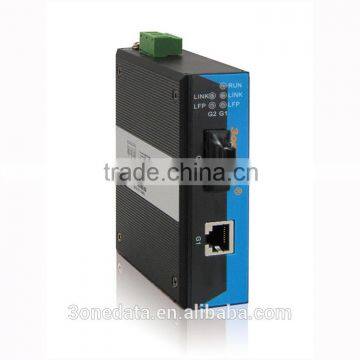

1 port DIN-Rail Industrial Gigabit Media Converter(SC/ST/FC)

1.Support 1 10Base-T/100Base-TX/1000Base-TX port and 1 1000Base-FX port
2.Support IEEE802.3/802.3u/802.3x/802.3z, store and forward
3.Ethernet port support 10/100/1000M self-adaption
4.Support LFP    (Link Fault Pass-Through)
5.DC12~48V power input, reverse connection protection
6.IP40 protection grade, high strength iron shell, DIN Rail installation

Switch

Properties

Forward speed: 1488100pps

Maximum filter speed: 1488100pps
Transmit mode: store and forward
Backplane bandwidth: 4.0Gbps
MAC table size: 1K
Buffer size: 1Mbits

Gigabit Electrical Port: RJ45 Connector, 10/100/1000Base-T(X) auto negotiation

Gigabit Fiber Ports: 1000Base-X SFP(SC/ST/FC connector)

Power port: 1 channel power iutput( 3 bit terminal block)

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

Single-mode: 20, 40,60, 80, 120Km,optional
Multi-mode: 2Km
Wavelength: 850nm, 1310nm, 1550nm

Typical 100Base-FX:
Multi-mode: 155Mbps, 1310nm, 2Km,
average output≥-18dBm, sensitivity≤-35dBm
Single-mode: 155Mbps, 1310nm, 20Km,
average output≥-12dBm, sensitivity≤-36dBm

Power input: 24VDC(12~48VDC)
Terminal block: 3 bits 7.62mm terminal block
No-load power consumption:1.51W@24VDC
Full-load power consumption: 1.80W@24VDC
Support reverse connection protection

Shell: IP40 protection grade, metal shell
Size(W×H×D): 110mm×95mm×35mm

Weight:346.6g

Installation: DIN rail mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 1
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 3
Shock:

IEC 60068-2-27

1. Industrial Ethernet Switch IMC101GT-1GF (plus terminal block)  × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1

5.DIN-Rail fittings  × 1
