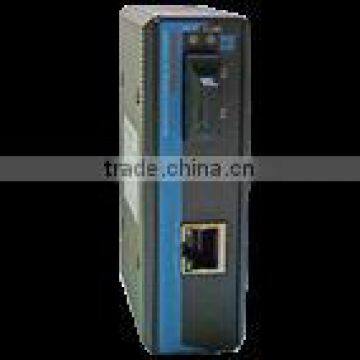

1-port Industrial Ethernet Media Converter, 12-36VDC
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen
- Credit Card PayPal
You May Like
-
10/100M Industrial Ethernet Media Converter(IMC101-F)
-
2-port Industrial Ethernet to Optic Fiber Converter(IMC102)
-
3ONEDATA 2-port Fast Ethernet to Fiber Industrial Media Converter
-
8-port Managed Optical Industrial PoE Switch with 4 ports PoE
-
5-port Managed Industrial PoE Switch with 4 ports PoE
-
9-port Managed Industrial PoE Switch with 8 ports PoE
Product Details
| Place of Origin | Guangdong, China | Brand Name | 3onedata | |
| Model Number | IMC101-F, IMC101-F |
Product Description
Specifications
IMC101-F is a speediness 10/100Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switchFeatures:
1. IEEE802.3/802.3u/802.3x,store and forward
2. Plug-and-play, easy to installation
3. 10/100M, F/H duplex, MDI/MDI-X auto negotiation
4. -40 to 75?C operating temperature range
5. Designed for industrial applications. IP30 protection, rugged high-strength metal case
Specifications:
Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
RJ45 port rate: 10/100BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST connector, optional)
Single-mode: 20, 40,60, 80, 120Km,optional
Multi-mode: 2,5Km,optional
Wavelength: 850nm, 1310 nm, 1550nm
Typical 100Base-FX: Multi-mode:155Mbps, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm
Single-mode:155Mbps, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm
Power
Input Voltage: 24VDC (12VDC~36VDC)
Opposite connection protection
Mechanical
Dimensions: 103mm×78mm×32mm (H×W×D)
Casing: IP30 protection, Metal case
Weight: 350g
Environmental
Operating Temperature: -40 to 75°C
Storage Temperature: -45 to 85 °C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI:FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), level 4
EN61000-4-3(RS), level 4
EN61000-4-4(EFT), level 4
EN61000-4-5 (Surge), level 4
EN61000-4-6 (CS), level 4
EN61000-4-8, level 4
EN61000-4-11, level 4
Shock: IEC 60068-2-27 PASS
Free Fall: IEC 60068-2-32 PASS
Vibration: IEC 60068-2-6 PASS
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals
Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX
RJ45 port rate: 10/100BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST connector, optional)
Single-mode: 20, 40,60, 80, 120Km,optional
Multi-mode: 2,5Km,optional
Wavelength: 850nm, 1310 nm, 1550nm
Typical 100Base-FX: Multi-mode:155Mbps, 1310nm, 2Km, average output≥-18dBm, sensitivity≤-35dBm
Single-mode:155Mbps, 1310nm, 20Km, average output≥-12dBm, sensitivity≤-36dBm
Power
Input Voltage: 24VDC (12VDC~36VDC)
Opposite connection protection
Mechanical
Dimensions: 103mm×78mm×32mm (H×W×D)
Casing: IP30 protection, Metal case
Weight: 350g
Environmental
Operating Temperature: -40 to 75°C
Storage Temperature: -45 to 85 °C
Ambient Relative Humidity: 10% to 95% (non-condensing)
Approvals
EMI:FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2(ESD), level 4
EN61000-4-3(RS), level 4
EN61000-4-4(EFT), level 4
EN61000-4-5 (Surge), level 4
EN61000-4-6 (CS), level 4
EN61000-4-8, level 4
EN61000-4-11, level 4
Shock: IEC 60068-2-27 PASS
Free Fall: IEC 60068-2-32 PASS
Vibration: IEC 60068-2-6 PASS
Warranty: 5 years
Approvals: FCC, CE, RoHS approvals
