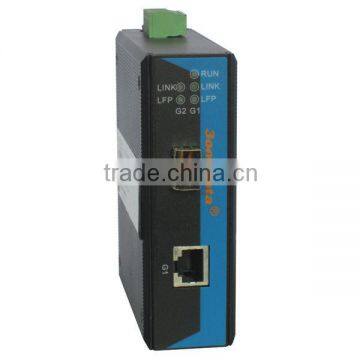

1-port Industrial Gigabit Ethernet media converter

Feature

1) Support 1 10Base-T/100Base-TX/1000 Base-TX port and 1 1000Base-X SFP port;

2) Support IEEE802.3/802.3u/802.3x/802.3z,store and forward;

3) Ethernet port support 10/100/1000M self-adaption;

4)Support LFP;

5) DC12~48V power input;

6)IP40 protection grade, high strength iron shell, DIN Rail installation.

Introduction

IMC101GT is a kind of industrial gigabit media converter, it support 1 10Base-T/100Base-TX/1000 Base-TX port and 1 1000Base-X SFP port. It support LFP function, it is easy to check the network connection status,, it also support CE,FCC standard, IMC101 adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input(12V~48VDC), -40 to 85°C working temperature.

Specification

Technology

Standard                 IEEE802.3, IEEE802.3u, IEEE802.3x,IEEE802.3z

Flow control            IEEE802.3x, back pressure control

Interface

Gigabit port                10Base-T/100Base-TX/1000Base-TX, Self-adaption

Gigabit fiber port       1000Base-X, SFP

Transmission

Twisted pair                 100M (Standard CAT5/CAT5e cable)

Multi mode fiber          1310nm, 2Km

Single mode fiber       1310nm, 20/40/60Km

                                        1550nm,20/40/60/80/100/120Km

Exchange of attribute

100M forward speed          148810pps

1000M forward speed        1488100pps

Transmission          Store and forward

Memory                     1Mbits

MAC address           1K

Indicator

System                    RUN

Ethernet port         G1 LINK

Fiber port               G2 LINK

Remote Ethernet port alarm            G1 LFP

Remote Fiber port alarm                  G2 LFP

Power supply

Power input               24VDC(12~48VDC)

Terminal block         3 bits 7.62mm terminal block

No-load power consumption            1.512W@24VDC

Full-load power consumption           1.800W@24VDC

Support reverse connection protection

Environmental

Operating temperature               -40~85°C

Storage temperature                  -45~85°C

Ambient Relative Humidity        10%~95%(non-condensing)

Mechanical

Shell                    IP40, high strength iron shell

Installation         DIN Rail

Weight                346.6g

Dimension(W×H×D)           110 mm×35mm×95mm

Standard

EMI            FCC Part 15, CISPR (EN55022) class A

EMS          EN61000-4-2 (ESD),Level 1

                  EN61000-4-4 (EFT),Level 4

                  EN61000-4-5 (Surge),Level 3

Shell        IEC 60068-2-27

Warranty

Warranty time         5 years

Certification

CE, FCC, RoHS, PAL, UL508(Pending)

Packing List

1)Media Converter IMC101GT(plus terminal block)×1

2)User Manual×1

3)DIN-Rail fitting×1
