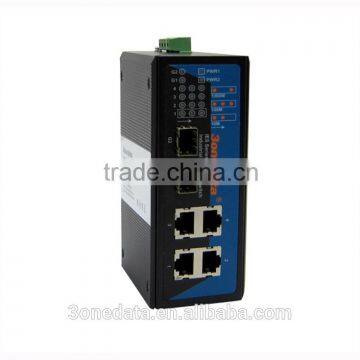

6 ports DIN-Rail Industrial Gigabit Ethernet Switch

1.Support IEEE802.3/IEEE802.3u/IEEE802.3x/IEEE802.3z store and forward
2.Support 4 10Base-T/100Base-TX/1000 Base-TX ports and 2 1000Base-X SFP gigabit fiber ports
3.Ethernet port support full/half duplex mode, MDI/MDI-X
4.Support 12~48VDC power input, built-in overcorrect protection, Reverse connection protection
5.Working temperature:-40℃~85℃
6.No fan, low consumption, Industrial design standard
7.IP40 protection grade, high strength metal shell.

Switch

Properties

Forward speed: 1488100pps

Maximum filter speed: 1488100pps
Transmit mode: store and forward
Backplane bandwidth: 12.0Gbps
MAC table size: 1K
Buffer size: 1M

Gigabit Electrical Port: RJ45 Connector, 10/100/1000Base-T(X) auto negotiation, full/half duplex mode, MDI/MDI-X

Gigabit SFP Port:1000Base-X, LC

Power port: 2 channel power iutput( 4 bit terminal block)

10/100/1000Base-T(X):CAT5/CAT5e UTP(≤100m)

1000Base-X:Optical Fiber

Multi-mode:    1310nm, 2Km
Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Power input: 24VDC(12~48VDC)
Terminal block: 4 bit 7.62mm separation distance
No-load power consumption:1.440W@24VDC
Full-load power consumption: 4.344W@24VDC
Support redundant protection
Support overcorrect protection
Support reverse connection protection

Shell: IP40 protect grade, metal shell
Size(W×H×D): 138mm×110mm×53mm

Weight:690.8g

Installation: DIN rail mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6

1. Industrial Ethernet Switch IES206G-2GS (plus terminal block)  × 1
2. User manual × 1
3. Certificate of quality × 1
4. Warranty card × 1

5.DIN-Rail fittings  × 1
