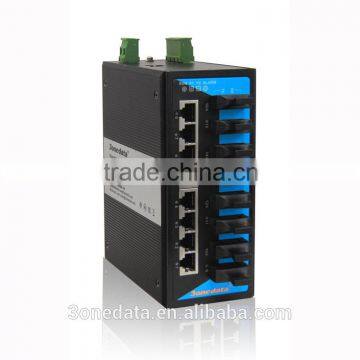

16 ports DIN-Rail Industrial Optical Ethernet Switch

1.Support IEEE802.3, IEEE802.3u, IEEE 802.3x
2.Store and Forward switching process type
3.Support MAC address auto-learning, auto-aging
4.Support 8K MAC address
5.Support 12.8Gbps backboard bandwidth
6.Support redundancy power supply(12~48VDC)
7.Support 1 channel relay alarm output
8.Industrial grade 4 design, Operating temperature range from -40 to 75°C
9.Designed without fan
10.DIN rail mounted

Switch

Properties

Forward speed: 148810pps

Maximum filter speed: 148810pps
Transmit mode: store and forward
Backplane bandwidth: 12.8Gbps
MAC table size: 8K
Buffer size: 4M

Electrical Port: RJ45 Connector, 10/100Base-T(X) auto negotiation , Half/full duplex and MDI/MDI-X auto detect

Optical Fiber Port: 100Base-FX(SC/ST/FC connector)

Console port: Retain

Alarm port: 1 channel relay alarm output( 2 bit terminal block)

Power port: 2 channel power iutput( 4 bit terminal block)

10/100Base-T(X):CAT5/CAT5e UTP(≤100m)

100Base-FX:Optical Fiber

Multi-mode:    1310nm, 2Km

Single-mode: 1310nm, 20/40/60Km
                          1550nm, 80/100/120Km

wavelength: 1310nm, 1550nm

Run indicator: Run
Interface indicator: Link (1~16)
Power supply indicator: P1, P2
Alarm indicator: Alarm

Input Voltage: 24VDC (12~48VDC)
Input method: 4 bits 7.62mm terminal block
Support DC dual power supply redundancy
Overload current protect: 1.2A

No-load consumption: 10.18W@24VDC
Full-load consumption: 12.26W@24VDC

Shell: IP30 protect grade, metal shell
Size(W×H×D): 160mm×130mm×70mm

Weight:1120g

Installation: DIN rail mounted

EMI:

FCC Part 15, CISPR (EN55022) class A
EMS:

EN61000-4-2 (ESD), Leve 4
EN61000-4-3 (RS), Level 3
EN61000-4-4 (EFT), Level 4
EN61000-4-5 (Surge), Level 4
EN61000-4-6 (CS), Level 3
EN61000-4-8, Level 5
Shock:

IEC 60068-2-27
Free fall:

IEC 60068-2-32
Vibration:

IEC 60068-2-6

1. Industrial Ethernet Switch IES3016-8F (plus terminal block)  × 1
2. User manual × 1

3. Certificate of quality × 1
4. Warranty card × 1

5.DIN-Rail fittings  × 1
