4E1 to Ethernet converter
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | 3ONEDATA | |
| Model Number | MODEL7210 |
Product Description
Specifications

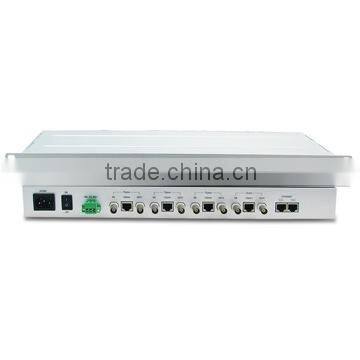

4 E1 to Ethernet converter, 1U 19" chassisUsing 4 E1 line transparent transfer Ethernet data
4 E1 to Ethernet converter
The MODEL7210 inverse multiplexers transmit up 8 Mbps channel over multiple E1 links. They bridge the gap between E1 and E3, allowing bridges and routers to operate at their fastest rates. The MODEL7210 have a built-in 10/100 Ethernet bridge with VLAN support for LAN-to-LAN applications over 4 E1 links. The MODEL7210 fully meets all of the E1 specifications including G.703, G.704. The unit features diagnostic capabilities for performing remote loopback tests
Features
1.Using 4 E1 line transparent transfer Ethernet data
2.Support pretend random coding loop test
3.E1 interface support 75ohm(BNC double )
4.Ethernet MAC address percolate function
5.Support VLAN over length data bag
6.Support 10M/100M full-duplex or half-duplex Ethernet interface
Communication
| Standard | According ITU-T G.703 standard and 10Base-T standard |
| E1 signal (BNC) | IN, OUT |
| E1 signal (RJ-45) | T+, T-, R+, R-, GND |
| Ethernet signal | T+, T-, R+, R-, GND |
| E1 port rate | 2.048Mbps*4=8.192Mbps |
| Ethernet rate | 10/100Mbps |
| Ethernet port working | Full-duplex/half-duplex |
| Data compress | Non-compress |
| MAC address percolate | 10000 MAC address information |
| Allow E1 transfer delay | 10ms |
| Ethernet data length | Support VLAN over length data bag |
| E1 port coding | HDB3 |
| Ethernet port coding | Manchester codes |
| E1 port transmission | 2KM |
| Ethernet transmission | 100M |
| E1 port protection | 1500V electromagnetism isolate |
| Ethernet protection | 1500V electromagnetism isolate |
| E1 port connector | 75 ohm(BNC double coaxial) |
| Ethernet connector | 120 ohm(RJ-45) |
Environment
| Working temperature | -25 to 70 |
| Storage temperature | -40 to 85 |
| Humidity | Relative humidity 5% to 95% |
Power
Input power | 220VAC or -48VDC |
Consumption | 4W |
Dimension
| L*W*H | 227mm*147mm*42mm |
| Shell | Plastic |
| Color | Black |
| Weight | 500g |
Update Date:2012-04-24 05:01:32
