1 port 10/100M Ethernet Media Converter with SFP slot
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | 3onedata/OEM | |
| Model Number | MODEL3010 |
Product Description
1 port 10/100M Ethernet Media Converter with SFP slot
| Introduction |
| The high performance Fiber Link Ethernet Extenders provide up to 120KM of Ethernet extension over single-mode fiber. The Model 3010 is ideal for campus networks, connecting remote LANs, and facilitating the optical last-mile connection to the metropolitan-area network. It provides a cost effective plug-and-play solution for long-range 10Base-T or 100Base-TX Ethernet extensions and added benefit of 10/100M auto-negotiation, making it the perfect choice when planning future upgrades of 10Base-T networks. Ethernet Fiber converters are ultra-miniature in size and feature a shielded RJ45 Ethernet jack, SFP style fiber-optic connections. Built-in auto-sensing capabilities enable full or half-duplex Ethernet operation with no configuration required. |
| Features |
1. Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX 2. MDI/MDI-X auto negotiation, 10M/100M auto negotiation 3. Supports full /half duplex, Point-to-point transparent transfer 4. With one SFP slot 5. Plug-and-play, easy to installation 6. Can insert to 2U 19", 14 slots Rackmount |
| Specification | |
| Standard | Comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX |
| Interface | RJ45 port rate: 10/100Mbps auto negotiation Optical Fiber port rate: 100Mbps |
| Power Supply | Power supply: External 5VDC input |
| Environment Requirement | Operating temp:-10°C to 65°C Storage temperature: -20 to 70°C Operating humidity: 5% to 95%(no condensation) |
| Physical Characterisitics | Dimensions: 94.0×71.0×26.0mm(external power supply) |
| Certification | CE, FCC, RoHS |
| Warranty | 3 years |

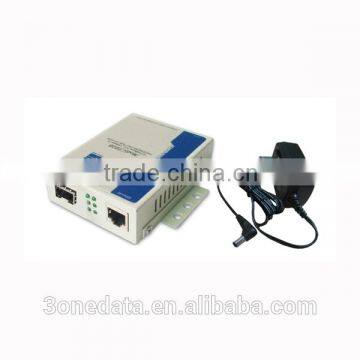

| Packing List | 1.Ethernet to Fiber Converter MODEL3010 × 1 2.Power Adapter × 1 3. User manual × 1 4. Certificate of quality × 1 |
| Dimension |
| |
| Show Case |
|
| Package |
|
| Shipping |
|
| Order Information |
| MODEL3010: 10/100M Ethernet Media Converter with one SFP slot, 5VDC, wall mounting |
