Optic Media Converter

Feature

1) Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX;

2) MDI/MDI-X auto negotiation, 10M/100M auto negotiation;

3) Supports full /half duplex, Point-to-point transparent transfer;

4) Power External 5VDC input;

5) Plug-and-play, easy to installation;

6) Can insert to 2U 19", 14 slots Rackmount(power external).

Introduction

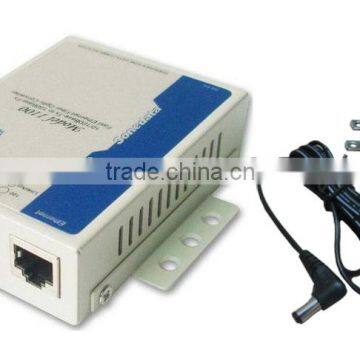

Model1100, 10/100M Media Converter, provides a cost effective plug-and-play solution for long-range 10Base-T or 100Base-TX Ethernet extensions and added benefit of 10/100 auto-negotiation, making it the perfect choice when planning future upgrades of 10Base-T networks. Model1100 Ethernet Fiber converters are ultra-miniature in size and feature a shielded RJ45 Ethernet jack, SC/ST/FC style fiber-optic connections. Built-in auto-sensing capabilities enable full or half-duplex Ethernet operation with no configuration required !

Specification

Parameter

Standards                          comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX

RJ45 port rate                   10/100Mbps auto negotiation

Optic port rate                   100Mbps

Working                             Asynchronous, point to point

Transfer distance            RJ45port: 100m

                                            Fiber optic: 20,40,60,80,100,120km(SM),2 km(MM) optional

RJ45 port cable               UTP 5E

Fiber connector               SC,ST,FC optional

Fiber optic cables           Single Mode:8.3/125,8.7/125,9/125 or 10/125 um

                                           Muti-Mode:50/125,62.5/125 um

Wavelength                     850nm,1310nm,1550nm

Power

Power supply                External 5VDC input

Consumption               4W

Environmental

Operating Temperature               -10 ~65°C

Storage Temperature                  -20~70 °C

Operating humidity                       5% to 95%(no condensation)

Appearance

Dimension(L×W×H)           94.0mm×71.0mm×26.0mm(Power External)

Material                                 Iron (Shell)

Color                                     White

Weight                                  230g(power external)

Warranty time                 5 years

Certification                     CE,FCC, RoHS

Ordering Information

Model1100-M                   multi-mode, 2Km, 5VDC, SC, FC or ST, optional

Model1100-S/20             single-mode, 20Km,5VDC, SC, FC or ST, optional

Model1100-S/40             single-mode, 40Km, 5VDC, SC, FC or ST, optional

Model1100-S/60             single-mode, 60Km, 5VDC, SC, FC or ST, optional

Model1100-S/80             single-mode, 80Km, 5VDC, SC, FC or ST, optional

Model1100-S/100           single-mode, 100Km,5VDC, SC, FC or ST, optional

Model1100-S/120           single-mode, 120Km, 5VDC, SC, FC or ST, optional

Model1100-SS/20           single-mode, single fiber, 20Km, 5VDC, SC, FC or ST, optional

Model1100-SS/40           single-mode, single fiber, 40Km, 5VDC, SC, FC or ST, optional

Model1100-SS/60           single-mode, single fiber, 60Km, 5VDC, SC, FC or ST, optional

Model1100-SS/80           single-mode, single fiber, 80Km, 5VDC, SC, FC or ST, optional

Packing List

1) 3onedata Ethernet Media Converter Model1100 series(plus terminal block)×1

2) User manual ×1

3)DIN-Rail fittings×1,optional

4)5VDC power adapter×1
