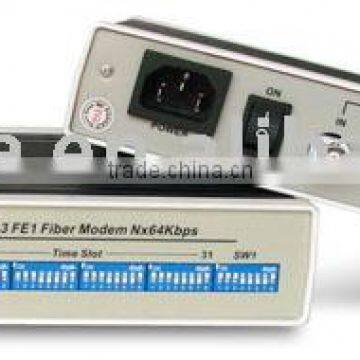

FE1 to optic fiber modem

Place of Origin	Guangdong, China		Brand Name	3ONEDATA
Model Number	MODEL7302

Specifications

Choice ST, FC, SC optic fiber connector ,E1(G.703)interface support 120ohm(RJ-45) and 75ohm(BNC),Multi-mode 2KM,

MODEL7302 Optical Optic Modem converts E1 electrical signal into optical data stream for transport over single mode or multimode fiber optic cables. At the opposite end of the fiber, the optical stream is converted back into electrical signals of the appropriate interface such as G.703 & V.35. This fiber optic modem extends the transmission distance up to more than 100Km. The frame format of MOD-E1 is frame/unframe for E1, so it can be used to transmit E1 signal of frame video or unframe video. The modem is capable of transmitting synchronous data with external clock at speeds from 1 Kbps up to 2.048 Mbps (n*64K), the modem can also be set to transmit asynchronous data at speeds from DC up to 64 Kbps.
Features
1.Lucency transfer FE1 (G.703) protocol
2.Support N*64Kbps(N=1-32 )rate
3.Choice ST, FC, SC optic fiber connector
4.E1(G.703)interface support 120ohm(RJ-45) and 75ohm(BNC)
5.Multi-mode 2KM, signal-mode 20-100KM
Communication

Interface standard	Accord ITU-T G.703, G.704 protocol
E1 signal (BNC)	IN, OUT
E1 signal(RJ-45)	T+, T-, R+, R-, GND
Optic fiber signal	TX, RX
Working	Asynchronism, transparent transfer
E1port rate	N*64Kbps(N=1-32)
Optic port rate	8.192Mbps
E1 port coding	HDB3
Optic port coding	CMI
Optic fiber wavelength	Multi-mode 850nm, signal-mode 1310nm
Optic port trasmission	Multi-mode 2KM, signal-mode 20-100KM
Interface protection	1500V electromagnetism isolate
E1 port connector	120ohm(RJ-45)and 75ohm(Blance)
Optic port connector	Multi-mode adopt ST connector, signal-mode adopt FC/SC connector

Environment

Working temperature	-25 to 70
Storage temperature	-40 to 85
Humidity	Relative humidity 5% to 95%

Power

Input power	220VAC or -48VDC
Consumption	2W

Dimension

L*W*H	227mm*147mm*42mm
Shell	Plastic
Color	BLack
Weight	280g
