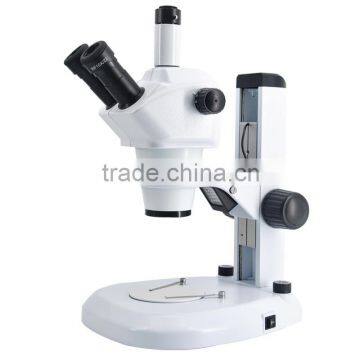

ZX-606M High Quality Trinocular Stereo Microscope

ZX-606M High Quality Trinocular Stereo Microscope

Description:

High-performance optical components can form the clear and high-contrast images, it’s fit for man-machine engineering design requirements.
Can reduce fatigue for a long observation, magnification is 8X-50X.
Reflection and transmission of ultra-thin LED light source design, illumination uniformity, the average life is 6000 hours.
The full range of the eyepiece and auxiliary objective lens, a wealth of accessories to meet the practicality of various functions.

Specification:

1. Model#: ZX-606M

2. Eyepiece tube: Trinocular eyepiece tube, Inclination 45°, CCD 1X

3. Eyepiece: High eye-point WF10X,field number Φ22mm

4. Eyepiece adjustment: Interpupillary distance adjustment range 57-75mm, diopter adjustment ± 5

5. Objective: 0.8X-5X

6. Zoom Ratio: 1/6.3

7. Working Distance: 115mm (Under parfocalization, lens distance is observed the height of the object)

8. Illumination system: Reflection and transmission light LED100V-240V/LED, brightness adjustable

9. Vertical arm height: 300mm

10. Focus system: Focusing handwheel adjustable elastic, lift the range 49mm

11. Stage: Black-white Stage, frosted translucent Stage

12. Optional Accessory: Eyepiece: WF15X16mm/20X12mm, Attachment Objective: 2X(To increase the magnification), Working Distance: 30mm,LED external ring lights, Camera.

Detail Show:

100% Products Actual Photos
