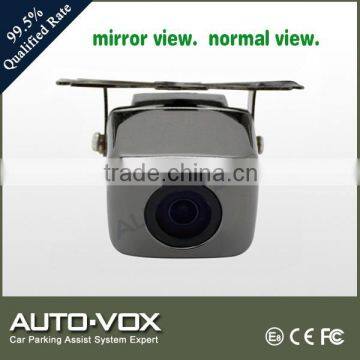

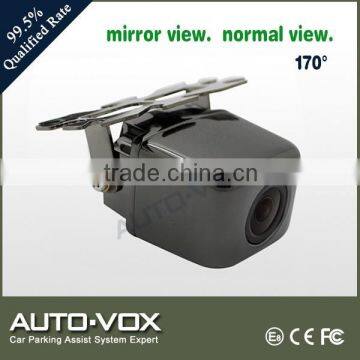

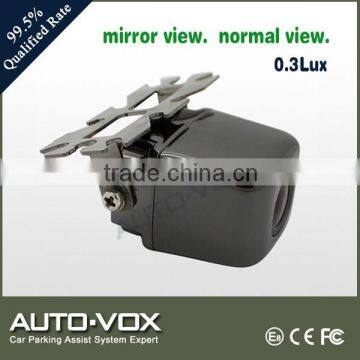

Water Proof IP67 Car Backup Camera

Specifications

car backup camera

KEY FEATURES

• Mirror view and normal view switchable
• Adopt digital high-resolution imaging process: 480TV lines
• Extra-low illumination of 0.3 Lux for clear night vision
• Automatic white balance function
• Viewing angle:  170° (Diagonal)
• Water-proof, shock-proof and anti-jamming functions
• Metal (Zin alloy) housing, anti-rusted
• Small size: 33mm*30mm*23mm
•  Pin nailed installation, hiding mounting at upper side of license-plate

Technical Specifications

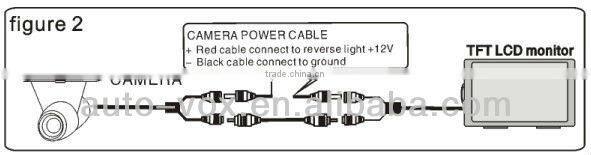

Camera Installation

A:Choose the proper position for screw holes and cable hole. Use a marker to mark points for the holes.

B:Use a good quality drill bit to drill the holes at the marked points.

C:Route the cable through the cable hole to the rear compartment and secure the camera with the screws. It is suggested to seal the holes with glass cement.

Mirror view and normal view is switchable

Mirror view and normal view is switchable via a step switch on the power box.

Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.

Mirror view is usually used for rear view while normal view is usually used for front view.
