Universal CCD Car Reversing Camera With Night Vision for Bus

Specifications

Car rear view camera

Key features

• Digital High-Resolution Imaging Process: 420 TV lines* 1/3 inch color CCD Camera
• IR illuminators automatic work at poor visibility
• Automatic White Balance Function(AGC & BLC)
• Water Proof, Shock Proof and Anti-Jamming Functions
• Camera Tilts Up/Down for Better View
• 120° Wide Viewing Angle
• Mirror view and normal view optional
• Easy and Quick Installation with all Hardware included
• Both chrome silver and black color available
• Dimension: 313mm x 160mm


Specifications

• Image device:1/4-inch color SHARP CCD.
• TV system:PAL.
• Effective pixels:628*492pixels.
• Sensing area:3.58mm x2.688mm.
• Sync. System:internal.
• Resolution:420 TV lines.
•  Minimum illumination:0Lux/(infrared LED on)
• Night Vision range:More than 8M.
• Lens:2.9(120)mm
• S/N ratio:more than 48db (AGC-OFF).
• Electronic shutter:/10,000 seconds.
• Video output:RCA connector, 1.0vp-p, 75ohm.
• Current consumption:<=250mA
• Power supply:DC 12-24V.
• Operating temperature:-10 to 50 degrees centigrade, RH95% Max.
• Storage temperature:-20 to 60 degrees centigrade, RH95% Max.
• Dimensions:40.3mm*52.5mm*48.62mm.
• Weight:240g.
• Other items:automatic white balance, AGC and BLC

Mirror view and normal view is switchable

Mirror view and normal view is switchable via a step switch on the power box.

Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.

Mirror view is usually used for rear view while normal view is usually used for front view.

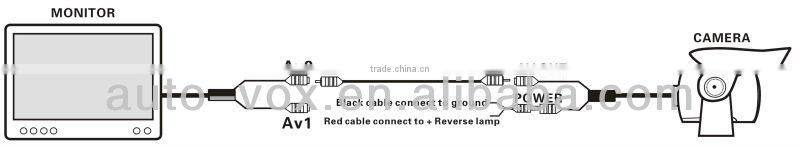

Wire connection

This cameras is designed to be applicable to long vehicles such as bus, truck.  They should be installed at proper position. When used for rear view at reversing. Camera with minor image function is used. Wire connection illustrated in diagram 1.

When the camera is intended for reversing. Connect the power cable of the camera with that of the reversing tear. The red wire end is positive the other is negative.
