Wireless Night Vision Reverse Cameras for Cars Apply for Monitor

Specifications

  wireless night vision reverse cameras for cars apply for monitor

     Key Features

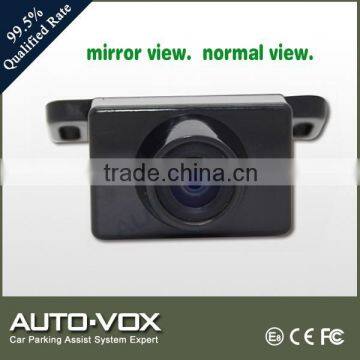

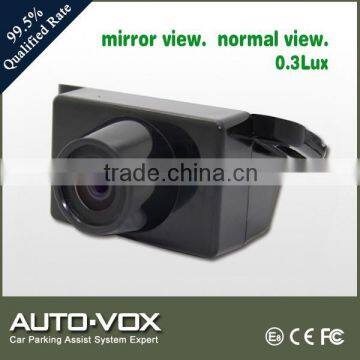

• Mirror view and normal view switchable

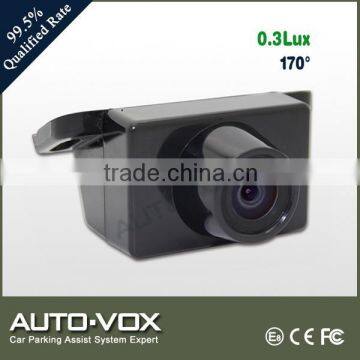

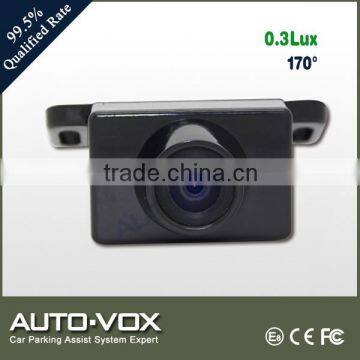

• Adopt digital high-resolution imaging process: 480TV linesExtra-low illumination of 0.3 Lux for clear night visionAutomatic white balance function
• Viewing angle:170°
• Water-proof,shock-proof and anti-jamming functions
• Mini size: diameter:18.5mm, length:22mmPin nailed installation, hiding mounting at upper side of
• license-plat

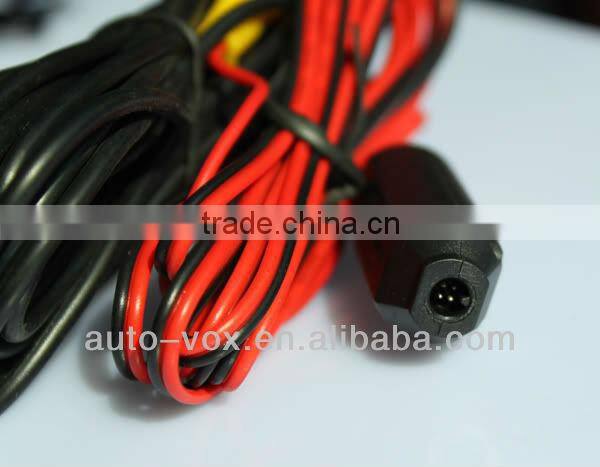

Wire Connection

When the camera is to be used for rear view with a monitor to assist with reversing, it should be wired as shown in Figure 2 below.

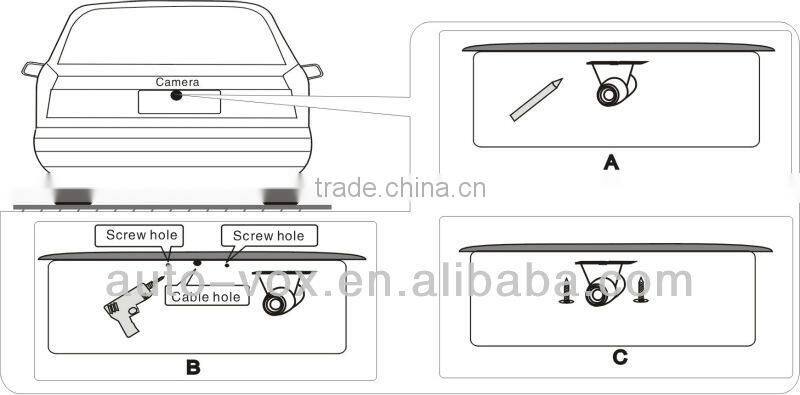

Camera Installation

A:Choose the proper position for screw holes and cable hole. Use a marker to mark points for the holes.

B:Use a good quality drill bit to drill the holes at the marked points.

C:Route the cable through the cable hole to the rear compartment and secure the camera with the screws. It is suggested to seal the holes with glass cement.

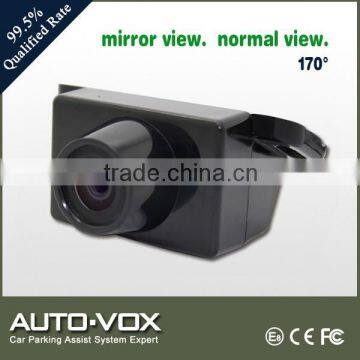

Mirror view and normal view is switchable

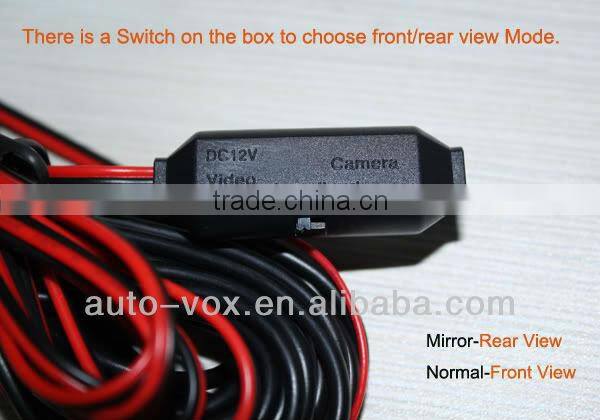

Mirror view and normal view is switchable via a step switch on the power box.

Mirror view is switched on when delivery. You can switch it to normal view subject to your specific needs.

Mirror view is usually used for rear view while normal view is usually used for front view.
