Home > Products > WAH hypoid gear reducer > WAH Hypoid Gear Reducer/ spiral gear reducer

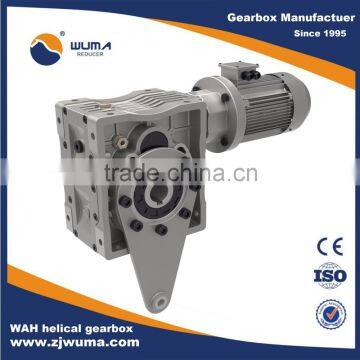

WAH Hypoid Gear Reducer/ spiral gear reducer
USD $80 - $200
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- Ningbo
You May Like
Product Details
| Gearing Arrangement | Hypoid | Output Torque | Up on 500NM | |
| Rated Power | 0.12~4KW | Input Speed | 1400 r/min | |
| Output Speed | 4.6~186.7 RPM | Place of Origin | China | |
| Model Number | WAH hypoid gear reducer | Brand Name | WUMA |
Product Description
WAH Hypoid Gear Reducer/ spiral gear reducer
Similar Products
 | | |
| WAH SERIES | PC SERIES | COMBINATION OF RV SERIES |
Product Description
Characteristics:
Product Name: WAH Series Hypoid Gear Reducer
Product Description :WAH series helical-hypoid gear units is a new-generation of product developed by our company .With a combination of advanced technology both from domestic and aboard .
| TYPE | WAH50,WAH63,WAH75,WAH90 |
| Transmission Stage | B: 2 stages |
| C: 3 stages | |
| Ratio | B: 7.5,10,12.5,15,20,25,30,40,50,60 |
| C: 50,60,75,100,125,150,200,250,300 | |
| Output torque | Up to 500NM |
| Motor power | 0.12~4KW,with flange:B5 or B14 |
| Housing material | Aluminum alloy |
| Output shaft | material: 40Cr |
| Hardness level: 242-286HB | |
| Helical gear | Material:20CrMnTi |
| Hardness level: 58-62HRC | |
| Precision level:6 grade | |
| Transmission efficiency | B:92%-94% |
| C:90%-92% | |
| Oil seal brand | SKF |
| Bearing | C&U |
| Lubricant | Mineral oil or sythetic oil |
| Difference from RV | ||
| project | WAH | RV |
| Transmission | Hypoid gear,Cylindrical gear | Worm wheel,worm shaft |
| Transmission efficiency | High(about:90%-92%) | Low(about:50%-85%) |
| Bearing capacity | 1-1.5 | 1 |
| temperature-rise | 30°C | 60°C |
| Running temperature | 50-60°C | 70-80°C |
| The sealing reliability | High | Low |
| Life | Long | Short |
| Self-locking | Non | Some ratio |
| Extension shaft | Non | Some |
1,Inner hex screw |
15,Hexagon sunk screw |
| 2,Intput flange | 16,Seal cover |
| 3,Oil seal | 17,Hole-circlip |
| 4,Intput adaptor | 18,Bearing |
| 5,Shaft-circlip | 19,Gearing |
| 6,Key | 20,Key |
| 7,Gear shaft | 21,Gear |
| 8,Bearing | 22,Oil seal |
| 9,housing | 23,Hole-circlip |
| 10,Breather | 24,Bearing |
| 11,Oil plug | 25,Distance collar |
| 12,Rubber | 26,Gear |
| 13,Cover | 27,Key |
| 14,Oil drain plug | 28,Hollow shaft |
