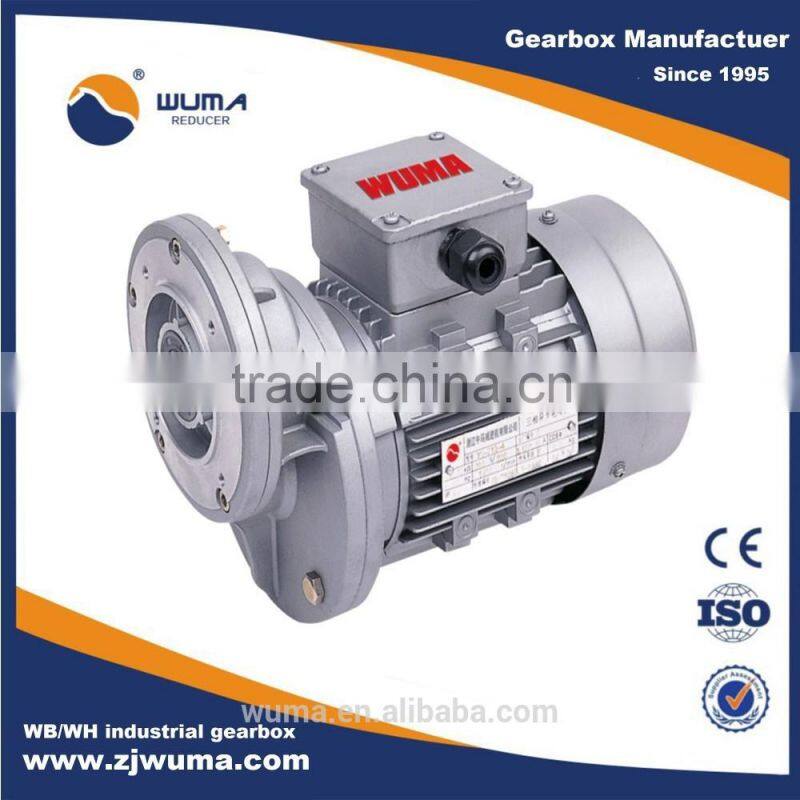

Hypoid Reducer With Flange
- Ningbo/shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WUMA | |
| Model Number | WAH50,WAH63,WAH75,WAH90 | Gearing Arrangement | Hypoid | |
| Output Torque | UP TO 500Nm | Rated Power | 0.18~4kw | |
| Input Speed | 1400rpm | Output Speed | 4.7~182r/min |
Product Description
 | | |

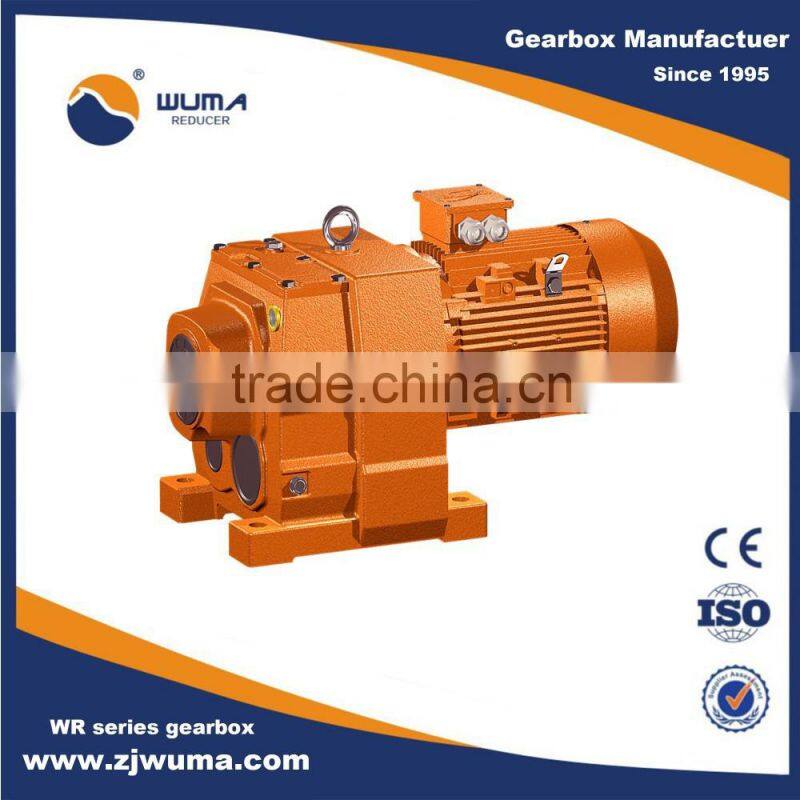

| WR SERIES | PC SERIES | COMBINATION OF RV SERIES |

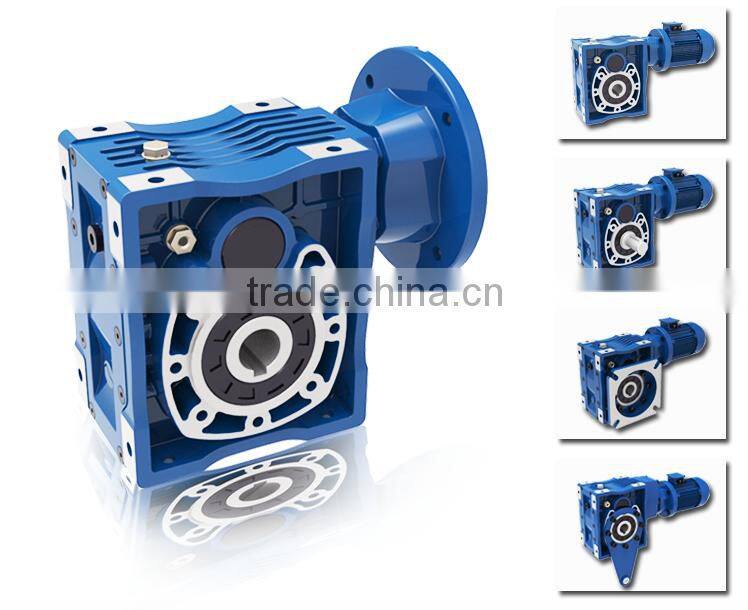

WAH series hypoid gear reducer
Advantages:
- Up to 30% energy savings possible
- Temperature rise: 20-30 lower
- Wider range of ratio: up to 300
- Suitable for all direction mounting
- Double lifetime compare to worm gearbox

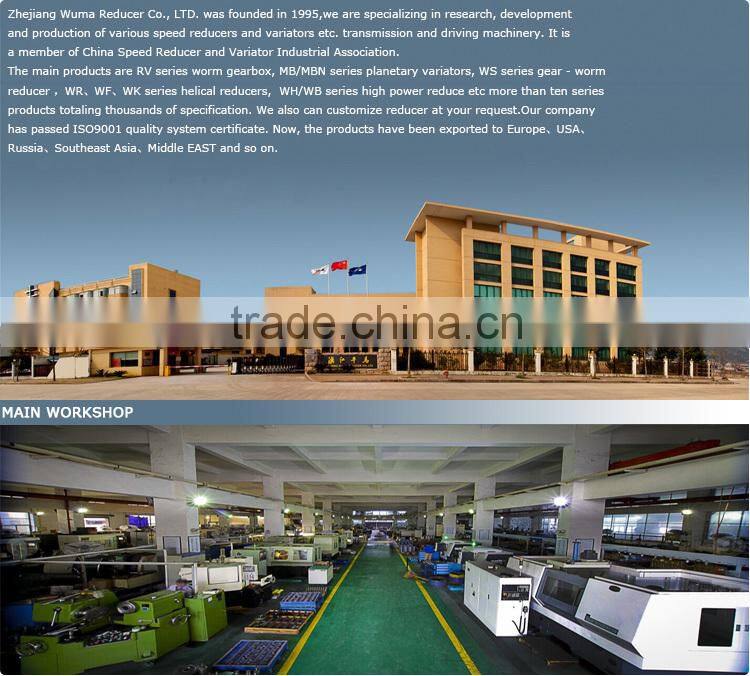

Professional manufacturer of gearbox since 1995.
| Type | WAH50,WAH63,WAH75,WAH90 |
| Transmission Stage | B: 2 stages |
| C: 3 stages | |
| Ratio | B: 7.5,10,12.5,15,20,25,30,40,50,60 |
| C: 50,60,75,100,125,150,200,250,300 | |
| Output Torque | Up to 500NM |
| Motor Power | 0.12-4KW,with flange:B5 or B14 |
| Housing Material | Aluminum alloy |
| Output Shaft | material: 40Cr |
| Hardness level: 242-286HB | |
| Helical Gear | Material:20CrMnTi  |
| Hardness level: 58-62HRC | |
| Precision level:6 grade | |
| Transmission Efficiency | B:92%-94% |
| C:90%-92% | |
| Oil Seal Brand | NAK |
| Bearing | C&U |
| Lubricant | Mineral oil or sythetic oil |
Same Features Between WAH and RV:
1.Mounting type and mounting size are the same.
2.Output type, output structure and output size are the same.
3.Input type and input structure are the same.
Difference Between WAH and RV | ||
| Project | WAH | RV |
| Transmission | Hypoid gear, Cylindrical gear | Worm wheel, worm shaft |
| Transmission Efficiency | High(about:90%-92%) | Low(about:50%-85%) |
| Load Carrying Capacity | 1-1.5 | 1 |
| Temperature-Rise | 30°C | 50°C |
| Running Temperature | 50-60°C | 70-80°C |
| The sealing reliability | High | Low |
| Life | Longer | Shorter |
| Self-locking | N/A | Some ratio can |
| Extension shaft | N/A | Available |
| Output bore size(dia. mm) | WAH50: 24 | RV50: 25 |
| WAH63: 25 | RV63: 25 | |
| WAH75: 28 | RV75: 28 | |
| WAH90: 35 | RV90: 35 | |
1 Q:What infomation should I tell you to confirm the product?
A: Model/Size, Transmission Ratio, Shaft directions & Order quantity.
2 Q: What if I don't know which one I need?
A:Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
3 Q:How long should I wait for the feedback after I send the enquiry?
A: Within 12 hours.
4 Q:What is your product warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
5 Q:What industries are your gearboxes being used?
A:Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry, escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
