Home > Products > High temperature alloy > Nickel Alloy Rod for Oil Screw Inconel 718
Nickel Alloy Rod for Oil Screw Inconel 718
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shanghai, China | |||
| Application | aeronautical field,chemical industry etc., Structural Steel Bar | Grade | Nickel alloy rod for oil screw, Nickel alloy rod for oil screw Inconel 718 | |
| Ni (Min) | 50% | Powder Or Not | Not Powder | |
| Model Number | Inconel 718 | Brand Name | Chonray |
Product Description

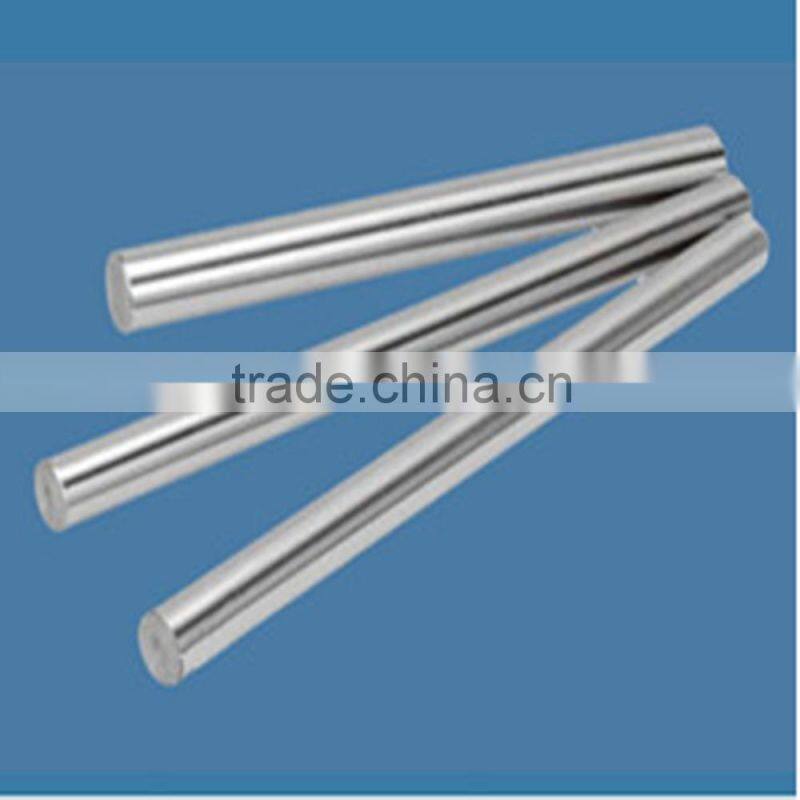

The picture of Nickel alloy rod for oil screw Inconel 718
Inconel 718 is a high strength nickel base superalloy used for cryogenic temperatures up to long term service at 1200°F. The alloy is readily fabricated and may be welded in either the annealed or precipitation (age) hardened condition. Anneal 1700 -1850°F, air cool or faster. Age 1325°F 8 hours, furnace cool to hold at 1150°F, for a total aging time of 18 hours, air cool. Alloy 718 will show a contraction of 0.0008 inch/inch after precipitation hardening.
Nickel alloy rod for oil screw Inconel 718 has excellent corrosion resistance at high and low temperatures and good resistance to stress-corrosion cracking and pitting corrosion. Alloy 718 has good performance in hostile environments containing H2S, CO2, chlorides, sulfides and free sulfur at selected temperatures. Alloy 718 is commonly used for cryogenic storage tanks, downhole shafts and wellhead parts.
Chemistry
| Ni+Co | Cr | Cb+Ta | Mo | Ti | Al | Co | C | Mn |
MIN | 50.00 | 17.00 | 4.75 | 2.80 | 0.65 | 0.20 | -- | -- | -- |
MAX | 55.00 | 21.00 | 5.50 | 3.30 | 1.15 | 0.80 | 1.00 | 0.08 | 0.35 |
Si | P | S | B | Cu | Fe |
-- | -- | -- | -- | -- | -- |
0.35 | 0.015 | 0.015 | 0.006 | 0.30 | Balance |
Alloy Form

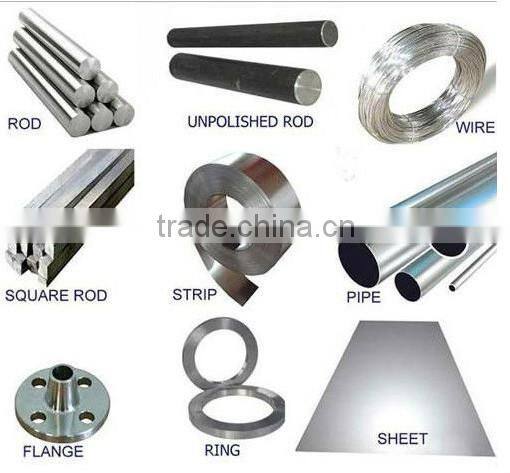

718 plate, round bar, sheet, welding products
Common Trade Names
Alloy 718, Inconel 718, Nickel 718
Features
- Good mechanical properties: tensile, fatigue and creep-rupture
- Excellent welding characteristics, resistant to postweld age cracking
- Oxidation resistant throughout its useful temperature range
Applications
- Gas turbine engine parts
- Liquid fuel rocket motor components
- Springs, fasteners
- Cryogenic tanks
Physical Properties
Density: 0.296 lb/in3 annealed, 0.274 lb/in3 aged
Melting point: 2410 - 2540°F
Temperature, °F | -320 | 70 | 200 | 400 | 600 | 1000 | 1200 | 1400 |
Coefficient* of thermal expansion, in/in°F x 10-6 | 5.9 | - | 7.3 | 7.5 | 7.7 | 8.1 | 8.4 | 8.9 |
Thermal Conductivity | - | 6.4 | 7.2 | 8.2 | 9.3 | 11.3 | 12.3 | 13.3 |
Modulus of Elasticity, dynamic psi x 106 | - | 29 | 28 | 27 | 26 | 25 | 24 | 22 |
* 70°F to indicated temperature.
More products for you to choose.

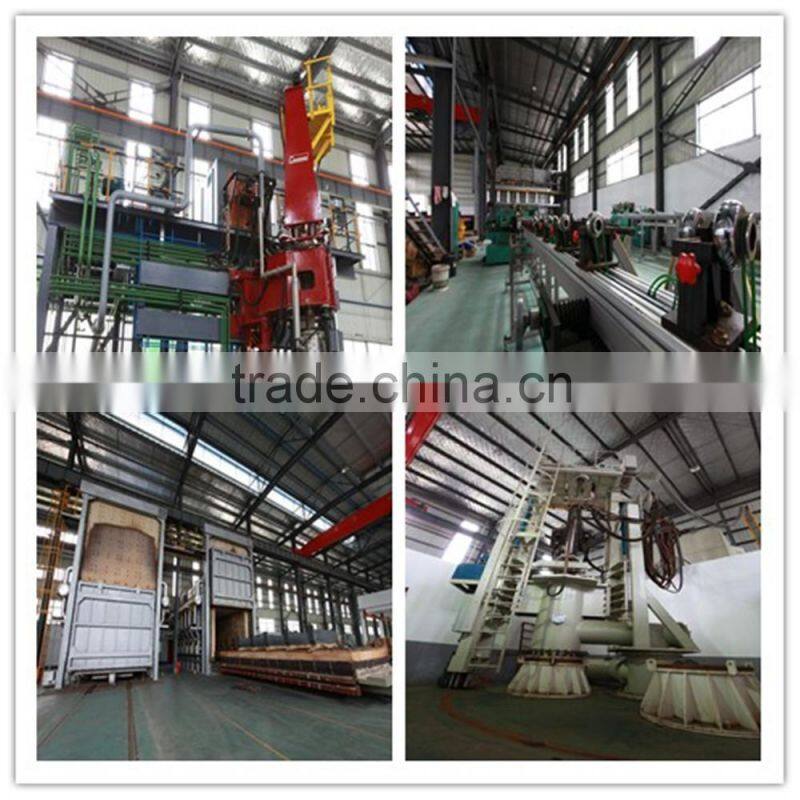

Production line
Testing Equipment
Certification

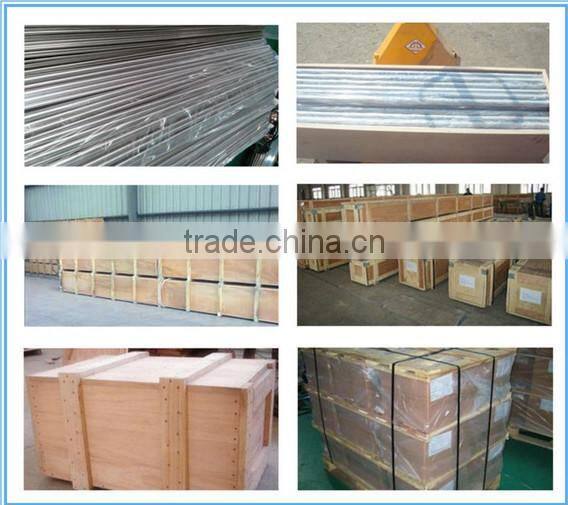

Packing picture:
