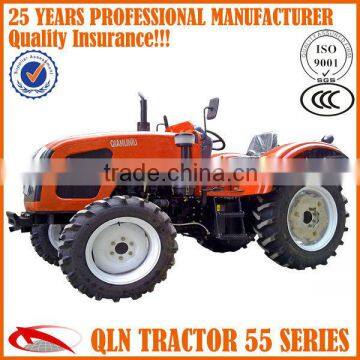

Agricole compact traktor QLN504 with CE and diesel engine

Condition	New		Type	Wheel Tractor
By wheel	4WD		Usage	Farm Tractor
Drive Type	Gear Drive		Power(W)	36.7kw
Certificate	Other, ISO9001-2008		Brand Name	QLN
Model Number	QLN504		Place of Origin	Henan, China
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

QLN Brand Farm Tractor
1. Brand engine
2. Fitted implements
3. Hydraulic steering, enforced PTO
4. One year warranty



Henan Qianli Company is specialized in Agricultural Equipments Manufacturing!

The main produce are wheel tractors 20hp to 145hp ,walking tractors 8hp to 20hp, and wide range of farm implements.

We are open to distributorship, and looking forward to establish mutual benefit cooperation with your esteemed company!



   +  =



♦Advantages and Characteristics of wheel tractor

1. Equipped with famous brand engine YTO/YUCHAI, with good performance, low fuel consumption and high economic efficiency.

2. Beautiful engine hood , Streamlined appearance.

3. 6,8,21 spline PTO( Power Take Off).

4. Rotation speed of PTO: 540/760r/min.

5. Hydraulic steering.Dual-stage clutch.





♦Specification of QLN504

Model	QLN 504
Drive type	4*4
Engine
Engine model	YT4A2
Capacity of fuel tank(L)	43
Rated speed (r/min)	2300
Engine power (kw)	36.7
Rated  fuel consumption (g/kw·h)	≤242
Transmission
Clutch	Single disc /dry type /dual stage
PTO Speed(rpm)	540/760 (commonly used)
Gearshift	F8+R4 shuttle gears
Hydraulic system
Hydraulic output valve	one group
Three point linkage
Category of 3-point link	categoryⅡ
Lifting capacity(at point of 610mm)KN	9.2
Technical parameter
Dimension( L*W*H) mm	3615*1750*2150
Wheel base(mm)	1990
Track base(mm) front/rear wheel	1400/1300
The smallest clearance(mm)	325
Front /rear tyre	8.3-20/12.4-28





 ♦Our honours: Since its inception, we have always operated with principle of positive,innovative and open up.

So, after years of develop and hard work,our company has received lots of honors we deserve.







  ♦We have oppornity to participate in the exhibitions,and attracts many foreign customers.Our worknet has spread all over the world.

 Our products have been exported to many other countries, such as Romania, Russia, Ukraine, Tanzania, Thailand, Australia, etc.











♦Our products:Different kinds of color and styles,we can also customized for you.Our professional technicians and workers guarantee the quality and maintenance of pruducts.

















♦Details of our products,they give you a much clear comprehension about QLN tractors.We concentrate on quality of products, including every details.













♦We are specialized in tractors, but we can offer you a one-step service,

so there are a wide range of farm implements we supply.





If you have any interests in our products, pls feel free to contact us!!

Wish you a sunny day!!
