Home > Products > New Products > Big fuel tank tractor QLN 80hp 4wd Farm wheel hydraulic steering

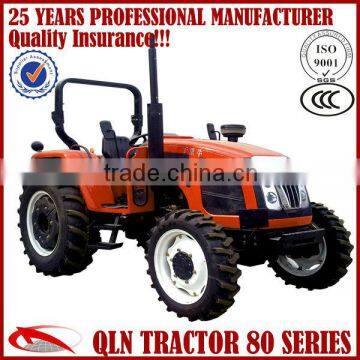

Big fuel tank tractor QLN 80hp 4wd Farm wheel hydraulic steering

FOB Price

US$ 12,550 - 20,000 / Set

1 Set(Min. Order)

Port Qingdao Shanghai
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Wheel Tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	59000
Certificate	Other, ISO9001;2008	Brand Name	Qianli Niu
Model Number	QLN-804	Place of Origin	China
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Farm wheel tractor
1. PTO speed 760/1000
2. Full hydraulic steering
3. Category two 3-point linkage
4. Reliable quality

Henan Qianli Machinery Co., LTD

General informations about QLN804

♦Main devices

•4 cylinder diesel engine

•Gearbox: ; F16+R8 (with creeper)

•Hydraulic power steering

•Hydraulic Output Valve

•Differential lock

•Dual speed PTO

•Dual clutch, independent operation

•Partial separated hydraulic hitch

•Draft positional adjustable

•Category Ⅱ Rear-mounted three-point linkage

♦Optional devices

Normal fan cab

Luxury cab

Roll bar

Sunshade

Air-conditioning

Heater

Lovol engine

Front Counter weight (220kg)

Rear Counter weight (160kg/layer, max 4 layer)

Air-brake

Hi-pressure devices

Paddy tire

Swing drawbar

Specifications of QLN804

SPECIFICATION
Model		804
Rated Power(kw)		58.8
Drive Type		4×4
Gearbox		F8+R2
Overall Dimension(mm)	Length(with front ballast)	4280
	Width	2085
	Height(to the exhaust vent)	2815
Wheelbase(mm)		2195
Front tread(mm)		1460
Rear tread(mm)		1620-2020
Min. ground clearance(mm)		370
Structure weight (KG)		3570
Tyre	Front tyre	11.2-24
	Rear tyre	16.9-30
Rated traction force (KN)		15
Steering type	All hydraulic steering
Hydraulic Hitch type	Partial separated or integrated
Speed of PTO (r/min)	760/1000
Spline shaft size (mm)	Φ35×6

Our certifications and honors

Products show with implements and cabin

The details of Tractor QLN

We have opportunity to participate in the exhibitions,and attracts many foreign customers.Our worknet has spread all over the world.Our products have been exported to many other countries, such as Romania, Russia, Ukraine, Tanzania,Thailand, Australia, etc.

The other products of 80A series

Farm implements we supply, one-stop purchase.

If you have any demands in our products, pls feel free to contact us!
