Henan QLN gear shift 100hp 4WD large agricultural tractor

Condition	New		Type	Wheel Tractor
By wheel	4WD		Usage	Farm Tractor
Drive Type	Gear Drive		Power(W)	73.5kw
Certificate	Other, ISO9001;2008		Brand Name	QLN
Model Number	QLN1004		Place of Origin	Henan, China
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

Famous Farm Tractor
1 F16+R8 gearshift
2 Dual clutch, independet operation
3 All hydranulic sreering
4 With AC cabin





♦Features for QLN farm tractor



The best tractors are a perfect combination of a powerful and economic engine, an efficient transmission, versatile hydraulics, a modern electrical system, and an ergonomic operator platform.

All of these characteristics can be found in the tractors from Henan Qianli company.





♦About QLN 100hp agricultural tractor



1. The machines are easy to operate with operator comfort and safety given the highest priority.

The simple easy to access lever system offers the operator optimum driving experience.

The machine is equiped with effortless power steering and comfortable seating.



2. The steel construction bonnet and guards a built to last and handle the knocks and bruises.

Combine this with the reliable long stroke high torque 4 cylinder easy start diesel engine and you have a machine that is truly a pleasure to work with.

Dual hydraulic pumps ensure you always have the hydrauli flow required for steering and powered implements.



QLN 80A series of wheel tractos(from 80hp to 100hp)represent the new generation of manufacturing in China. The rugged machine contribute to commericial rliability and endurance.





♦Specification of AGRICULTURAL tractor QLN-1004



Type drive	4*4
Engine
Engine model	YTO/Yuchai/LOVOL
Capacity of fule tank(L)	150
Rated speed(r/min)	2300
Engine power(kw/hp)	73.5/100
Lowest fule consumption(g/kw.h)	≤ 242
Transmission
Clutch	Dry, dual-stage, independent
PTO Speed(rpm)	540/1000 or 760/1000
Gearshift	16F+8R shuttle gear
Hydraulic system
Hydraulic output valve	2-Way(optional)
Three point linkage
Category of 3-point link	Category II
Lifting capacity(at point of 610mm)KN 610mm	>17.6
Technical paremeter
Dimension LxWxH mm	4280x2085x2925
Wheel base(mm)	2195
Track base(mm) front wheel	1610~1950 mm
Track base(mm) rear wheel	1620~2020 mm
The smallest clearance(mm)	380
Front tyre	11.2-24
Rear tyre	16.9-34/ 18.4-30 (optional)



♦Photos of Qianli Niu Large Farm Tractos

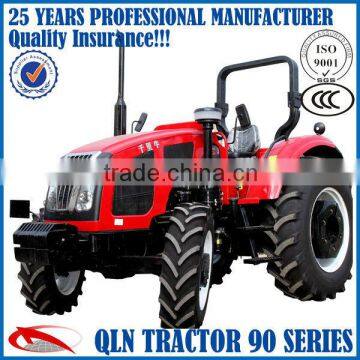

1. 1004 farm tractor Qianli Niu Brand







2. Majestic front view





3. Out from within







♦Details of QLN Large Farm Tractor















♦We are professional and participate in many exhibitions













♦Our mission



  1. Quality and credit go first



  2. Convenient one-stop purchase



  3. One year warrantly







If you are intrested in our products, please contact us. We are sincely looking forward to your patronage!
