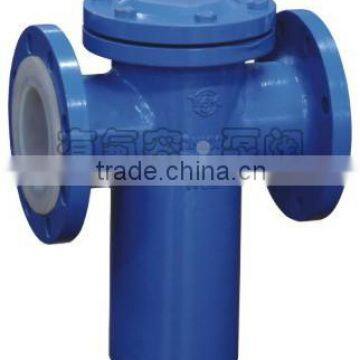

Flange Type PTFE lined Basket strainer

PTFE lined Basket strainer for pipeline

Technical Specification
Design and Manufacture Standard: ASME B16.34, HG/T 3704
Flange Standard: ASME B 16.5 ,GB/T 9119 ,DIN ,JIS
Inspection and Testing: API 598, GB/T 13927

Product Specification
Body Material: WCB, ASTM A395 , CF8 ,CF8M

Lining Material?? PTFE , PFA , PO ,FEP

Screen Material: PTFE

Nominal Diameter: 1/2"-14"(DN15~DN350)
Pressure Range: Class150 , PN10 , PN16

Product description:

1.Youfumi lined strainer is the corrosion resistant equipment that used in a variety of corrosive services for the removal of debris from the pipeline or solid particles from the media.

2.The unique design allows the strainer to be easily removed for cleaning or replacement. Impurity substance stops at PTFE screen so that the purity flow can go through the strainer. After a period of time, take out the dismountable filter screen tub, and it can be reassembled after cleaning. Therefore it is easy maintenance.

3.Youfumi has various filter structure design with replaceable filter parts, and standard flange connection.

4.Screen size of Youfumi lined strainer ranges from 16 to 100 meshes, and 16 meshes as standard.

5.By far the lined strainer is widely used in petroleum, chemical pharmaceutical and environmental protection industries. It can not only enlarge the lifespan of pump and other equipment, but also ensure the safety of the complete system. Lined strainer becomes the indispensable equipment for industrial production.
