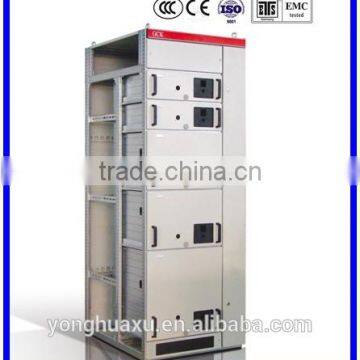

Best Seller GCK low voltage withdrawable switchgear cabinet/cabinet door light switch

Overview

GCK low voltage withdrawable switchgear is suitable for power distribution system with AC 50(60)HZ and rated working current up to 660V applicable for power distribution equipment for distribution, motor control and lighting. It conforms to relevant standard such as IEC60439-1,GB7251.1and JB/T9661.

Structure instruction

The assembled cubicle has its framework made of KB or KS profiles. The top is wide-open and horizontal busbar is placed at the top with the cover open or not. A rear door is provided with the outgoing at the rear, facilitating mounting and maintenance. The drawer can be operated without the door open. When the door is open, the drawer is employed with trigger two-position or three-position operation mechanism and screwed-type feeding mechanism; when the door is not open, the drawer is employed with CXJG type operation mechanism. The primary plug-in is of new type without valve, ensuring more dependability. The rated current of until loop is up to 600A and 1/2 unit drawer can reach maximum current of 100A.The protection degree of the enclosure is IP3X-4X.

Main characteristics

1. The cubicle is of assembled structure, grids mounting, great versatility of parts and components, good applicability and high standardization level;

2. The effective height of drawer cabinet is 1800mm with module height of 200mm/300mm/400mm/500mm/600mm.

3. Cable compartment is situated at the upper, apparatus compartment at the front and cable access compartment at the rear. Steel plates or insulating plates are added as partition between each compartment as to ensure safety;

4. The door of drawer compartment has mechanical interlock with operating handle of circuit breaker or disconnect switch, therefore, it is opened only when the handle is in breaking position;

5. Drawer of MCC switchgear is provided with three positions as making, testing and breaking.

a. Delivery term:

We will delivery for you after you done the full payment within 7 to 20 working days.

b. Payment:

Usually,we accept T/T, irrevocable L/C at sight ,for regular order ,we prefer 50% in advance ,50% against the copy of B/L

1.We have a professional and efficient team. Young R&D team with experienced, our team average age is 13 years and the staff longest experience in the industry field are over xxx years while the shortest one are more than 20 years.

2.Our products manufacturing process are in accordance with GB/T19001-2008 quality management system requirements and technical standards are in accordance with GB11022 / DL404 IEC60694 which could guarantee delivering time & excellent quality for the clients.

3.The price advantage: our company has established complete supplier evaluation & supervision system, strict control of production cost and strive to provide the optimized cost-effective products for clients

4.Professional and timely after-sales service: Based on all products standardized design, we can provide users with the most convenient and fast service, our 24 hours service telephone: 0086-532-80771657.

5.Team trust, cooperation, commitment, loyal customers, strict compliance and deliver on time.

Q: How do you control the quality ?

A: We have QC team comply with TQM,each step is in compliance to the standards,At the same time ,we will take photos and shoot video for you .

Q: What about lead or shipping time?

A: The lead time depends on quantity you ordered ,but generally within 40-50 days upon receipt of advance payment.

Q: How long does it take for me to get the quotation.

A: For customized products, we will quote after you provide the requested product detailes within 48 hours beacuse we need the time to calculate cost, but we will quote the soonest possible. for our standard product posted here we can quote in 24 hours.

Q: Why should I choose your company?

A: We take customers's requirments as our mission,and take each details very carefully. We have about 15 years experience for electric power business. We try to support our customers always,including delivery time,price ,pre-sale,after-sales,though We are not the best,but  we are always to improve ourself and meet your needs.Choose us ,will don't make you disappointed.
