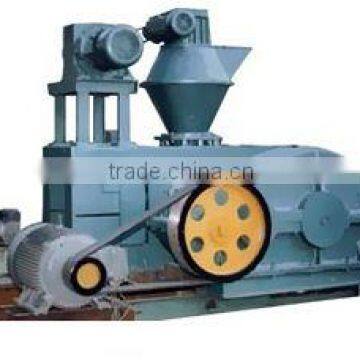

Coke Powder Briquette Making Machine

Specifications

High pressure coke powder briquette making machine can make briquettes from a wide range of powdery materials, including carbamide, pigment, calces, plastic, chemical fertilizer, cryolite, coal, coke powder, clay, caustic soda (sodium hydroxide), alumina, active charcoal powder, ore dust, iron ore, magnesium powder, aluminum powder and many other mineral powder materials. Unlike ordinary briquettes, dry powder briquettes need no binder during briquetting process.

Specification

With this machine, mineral powder wastes can be recycled and compressed into useful and high-density briquettes which are small in size and convenient for transportation.

Requirement on raw material:

• Sufficient supply;
• Size of raw material: the maximum size should be less than 2mm, and the proportion of large particles should be less than 20%.
• To avoid roller damage, there shouldn’t be any metallic material in the raw material.

Requirements on Briquetting Process Flow

• Ensure the feeding system to be continuous, uniform and stable.
• Since the hopper of the machine is filled with raw materials, overflow pass is necessary in the feeding system.
• During the briquetting process, the exhaust port of the feed hopper on the briquette machine should be connected with dust removal pipes to make the gas discharged.
• During the briquetting process, the new materials must be proportioned with some crushed and returned materials, if the returning materials are inadequate, it will be difficult for briquetting, especially for the materials hard to form briquette.

Working Principle:

The working process of this machine can be divided into three parts – pre-pressing, pressing and de molding.

• Pre-pressing: Above the rollers, there is a rotating screw device driven by variable-speed motor to pre-press the material.
• Pressing: After pre-pressing, the material will be forced into the double rollers. This stage can also be called degassing.
• Demoulding: After the mould closed, with the roller rotating, the briquettes will be demoulded automatically.
